Home >> Buick >> 1985 >> Electra V6-260 4.3L DSL >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G200 & G201 (Part 2 of 4)

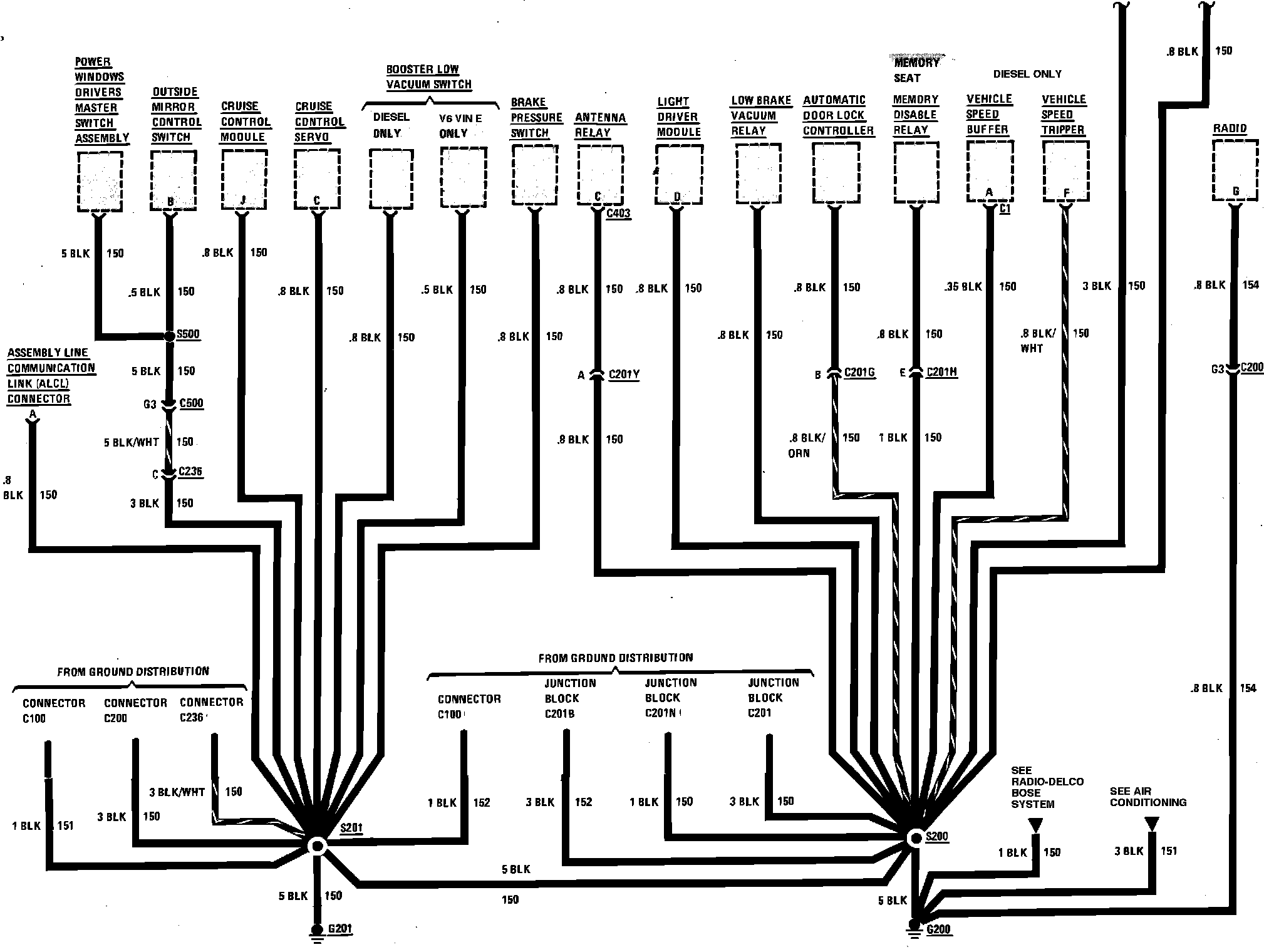

G200 & G201 (Part 2 of 4)

Ground Distribution (G200 & G201), Electra:
