Throttle Position Sensor: Testing and Inspection

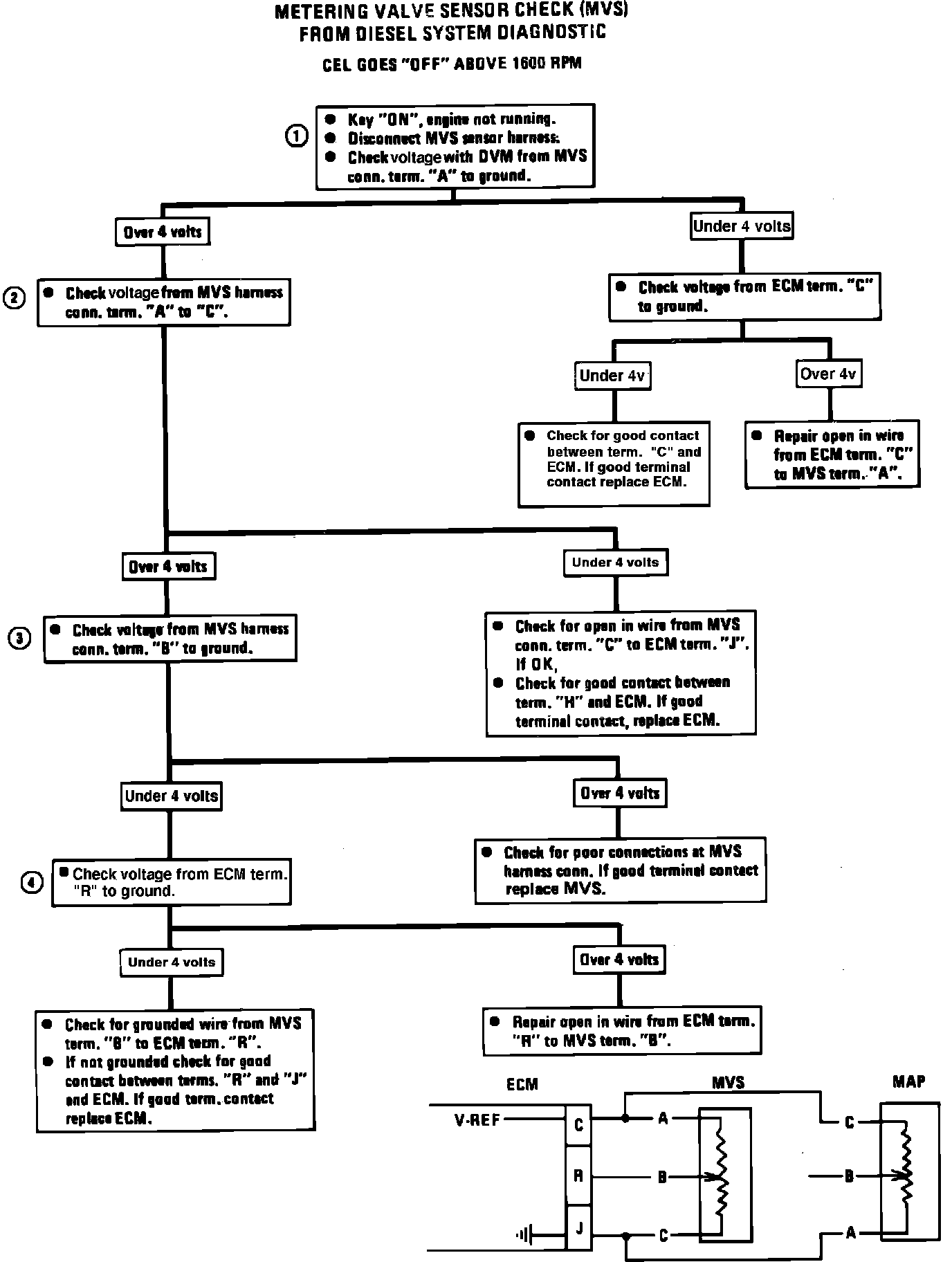

Fig. 4 DEC System Metering Valve Sensor (MVS) Diagnosis:
