Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Electra V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Glow Plugs/Fuel Control
Glow Plugs/Fuel Control

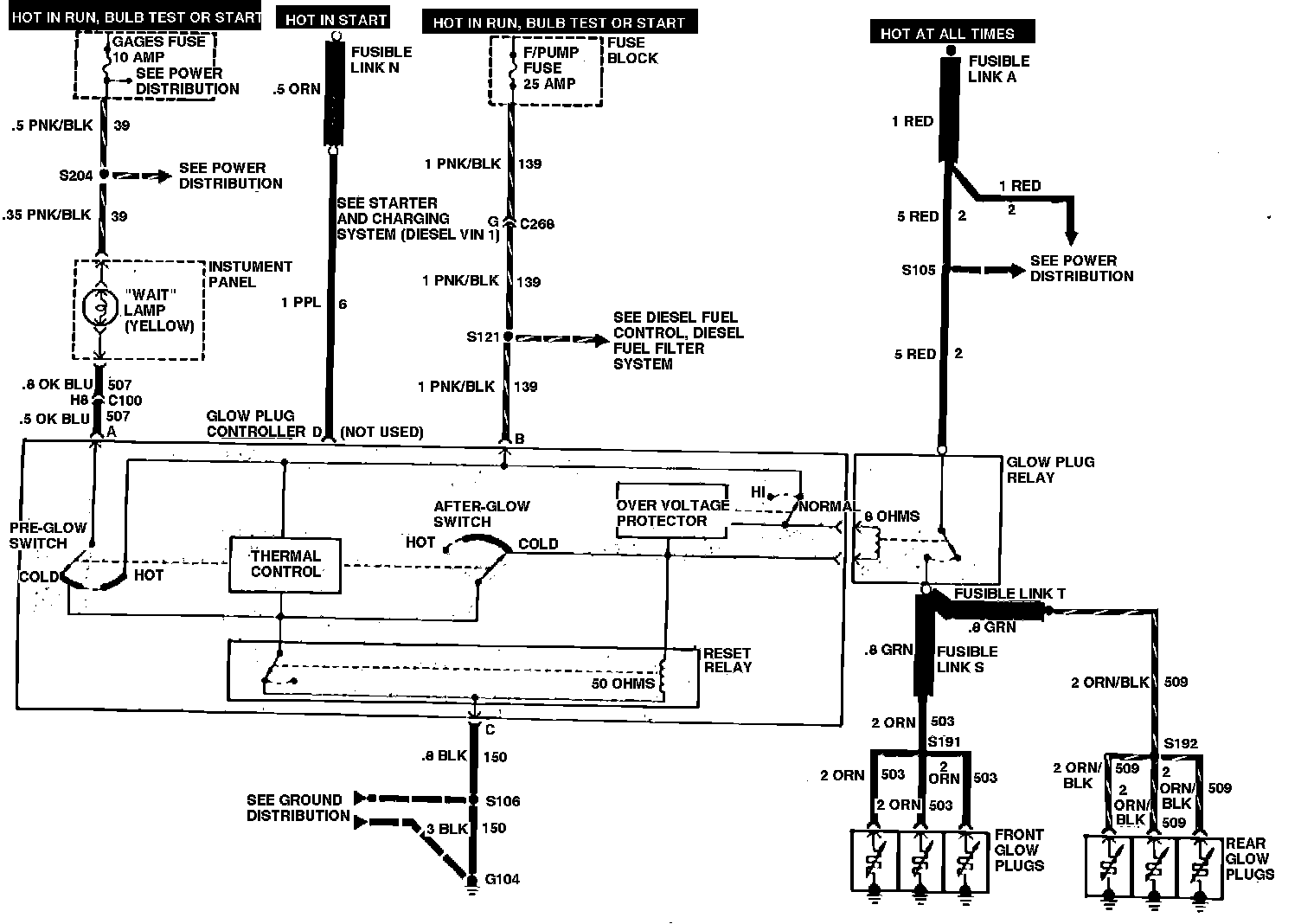

Fig. 4 Glow plug:
