Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Electra V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Torque Converter Clutch (TCC)
>>
California Vehicles
California Vehicles

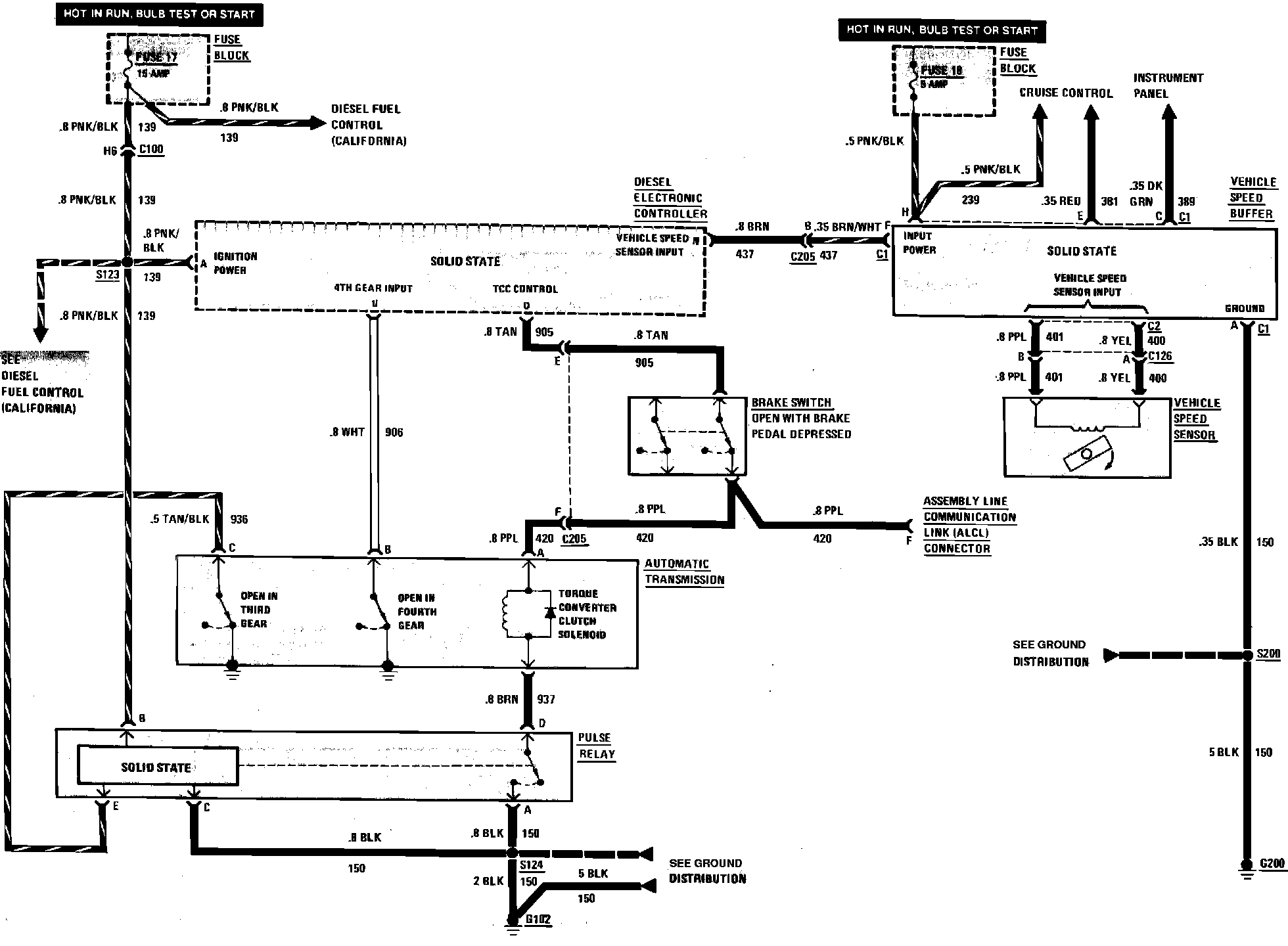

Torque Converter Clutch Wiring Circuit, Electra, California:
