Metering Valve Sensor (MVS), Replace

Fig. 47 Air crossover removal & installation:

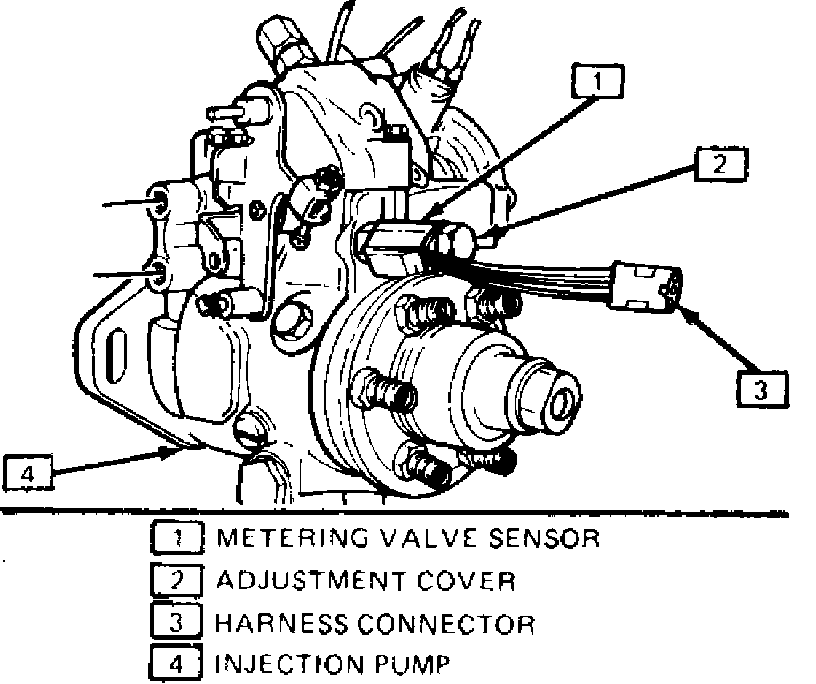

Fig. 52 MVS assembly:

1. Remove air cleaner and air crossover, Fig. 47, then install cover J-29657.
2. Disconnect sensor electrical connector, then remove sensor from pump, Fig. 52.
3. Install new O-ring on sensor, then coat threads with suitable sealer. Torque sensor to 30 inch lbs.
4. Remove cover J-29657, then install air cleaner and air crossover.
