Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Electra V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

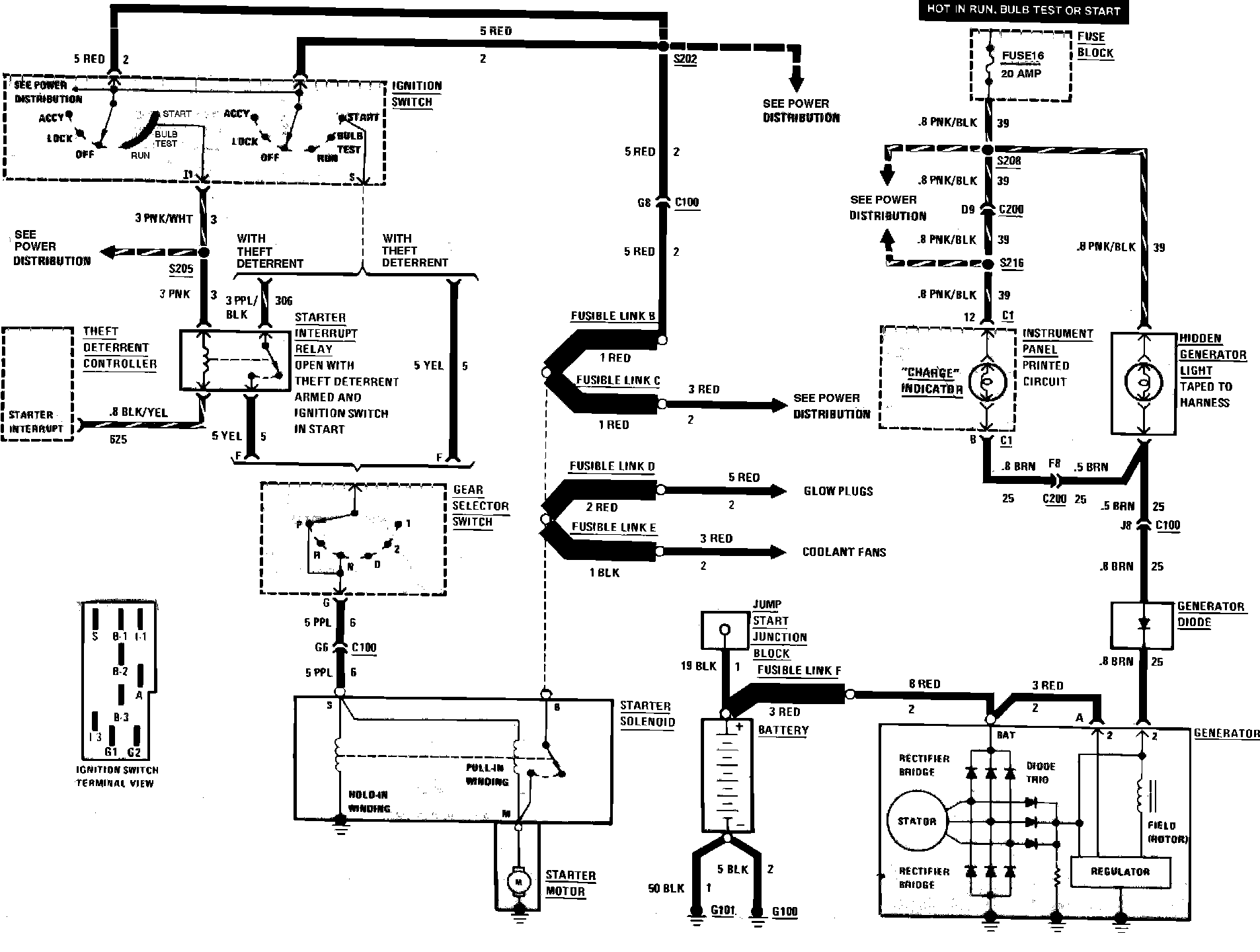

Charging System & Starter Wiring Circuit, Electra:
