Home >> Buick >> 1985 >> Electra V6-260 4.3L DSL >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Fuse Block Diagrams >> Fuse Block Details >> Circuit Breaker 23, Fuse 19 and Fuse 20

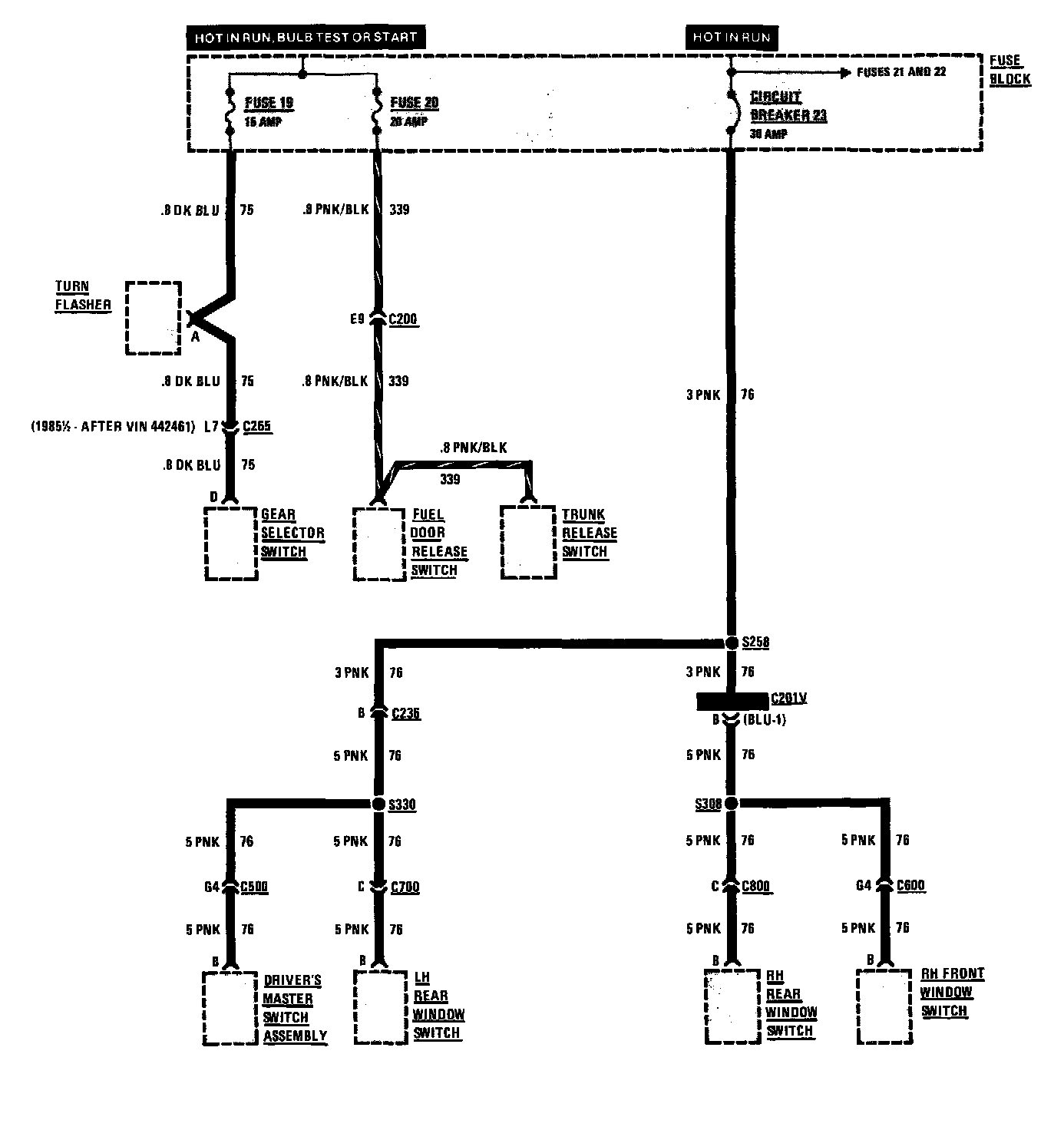

Circuit Breaker 23, Fuse 19 and Fuse 20
