Buick
>>
1985
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

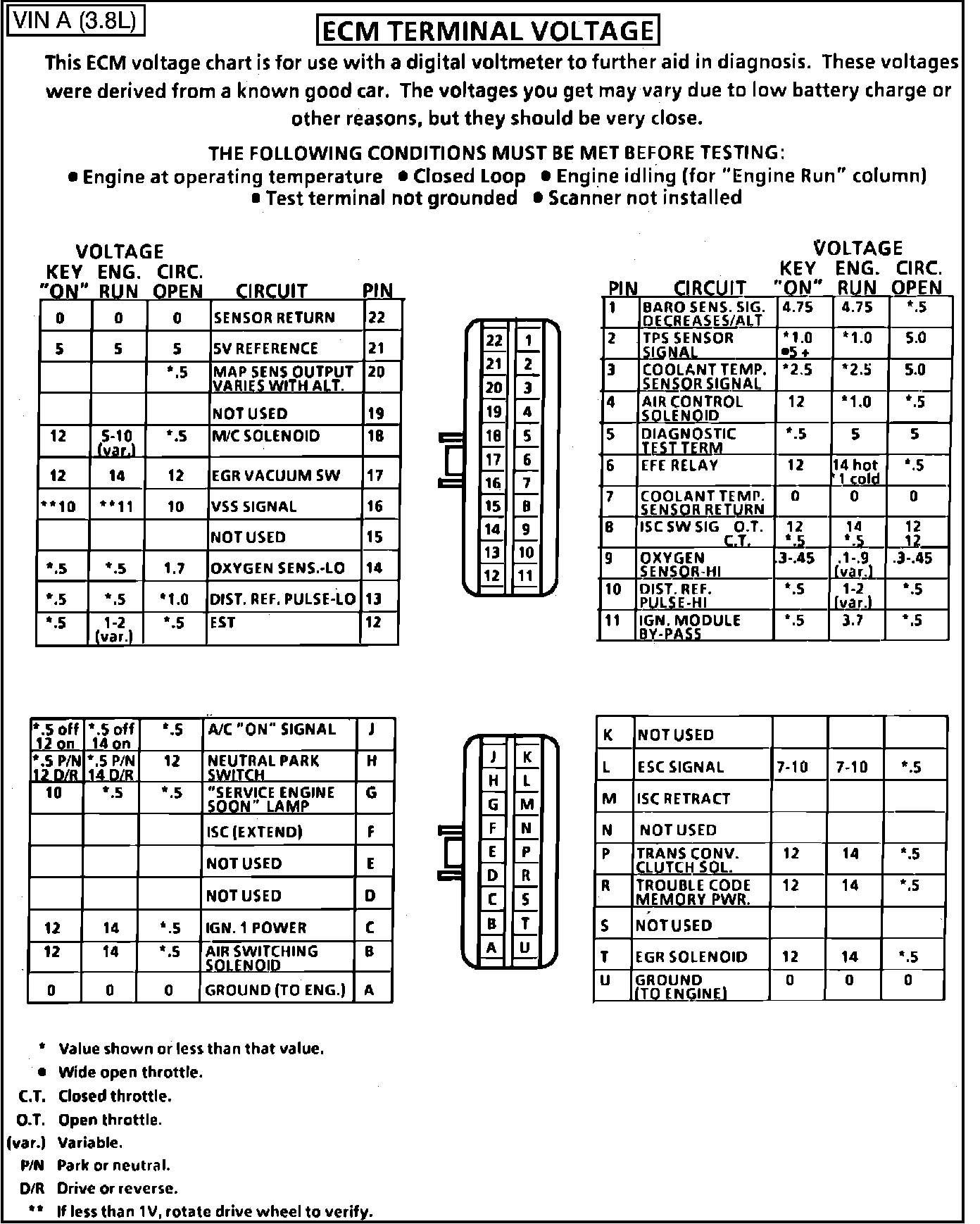

Fig. 014 - ECM Connector Terminal Identification & Voltage Specifications.:
