Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Dome Lamp
>>
Sedan
>>
4 Door
4 Door

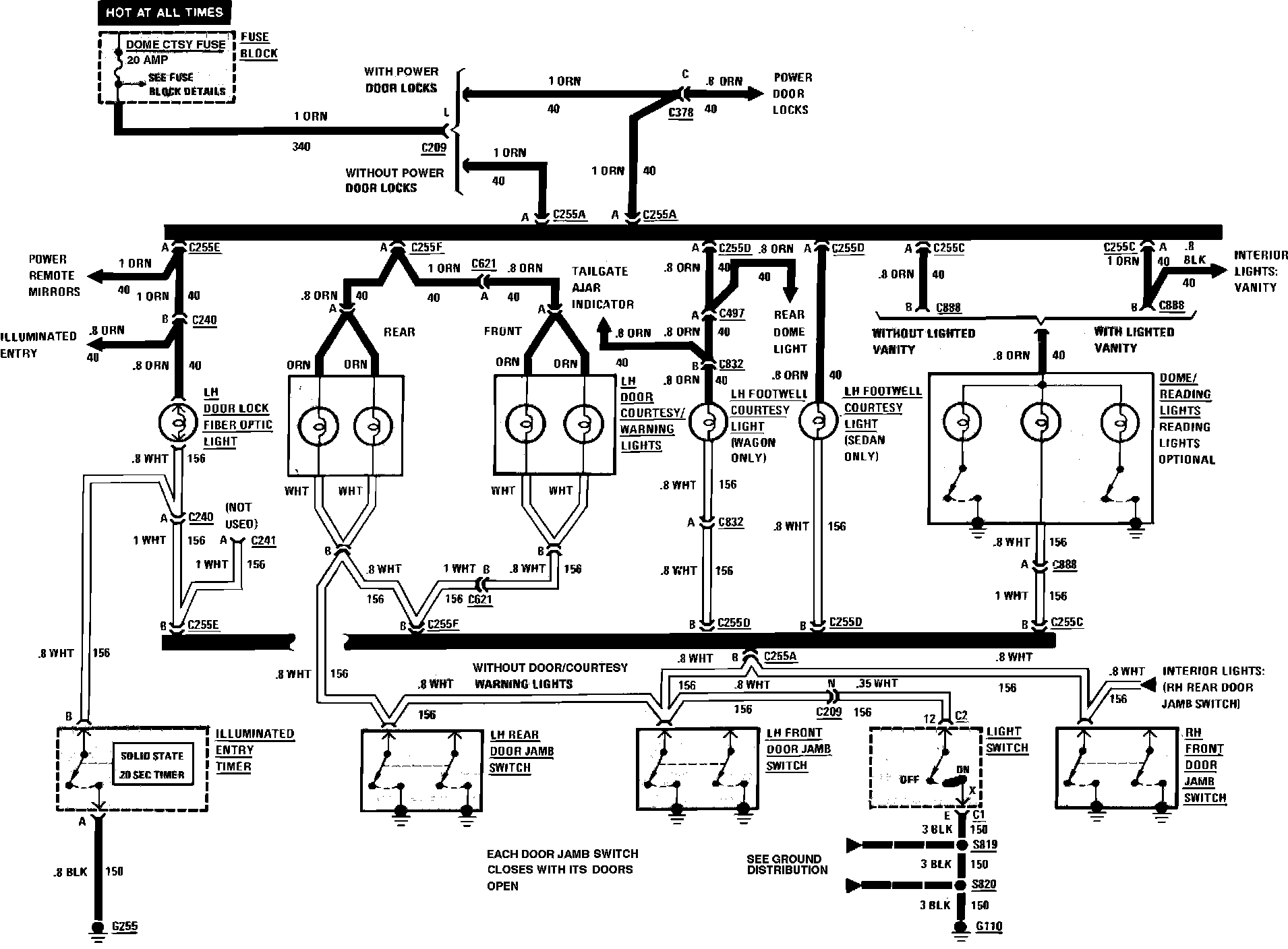

Interior Lights Wiring Circuit:
