Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Dome Lamp
>>
Wagon
>>
Rear Dome Light
Rear Dome Light

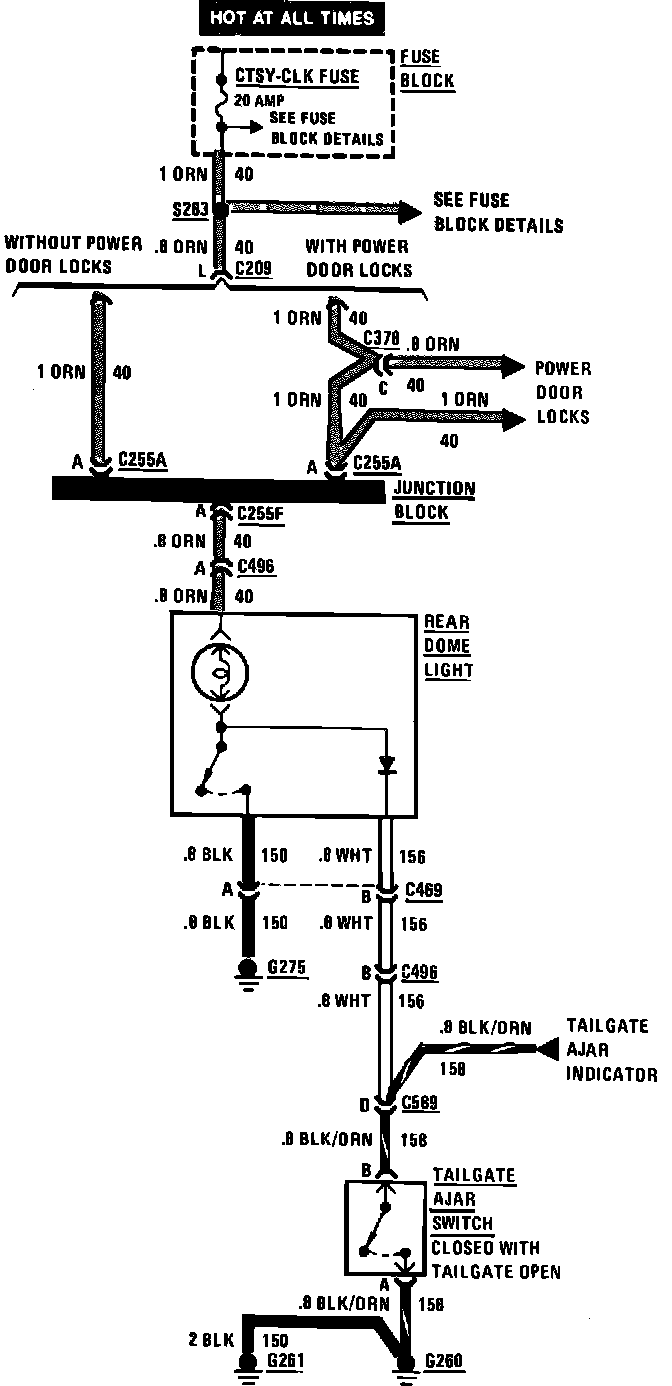

Rear Dome Light Wiring Circuit:
