Buick
>>
1985
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
License Plate Lamp
>>
LeSabre
LeSabre

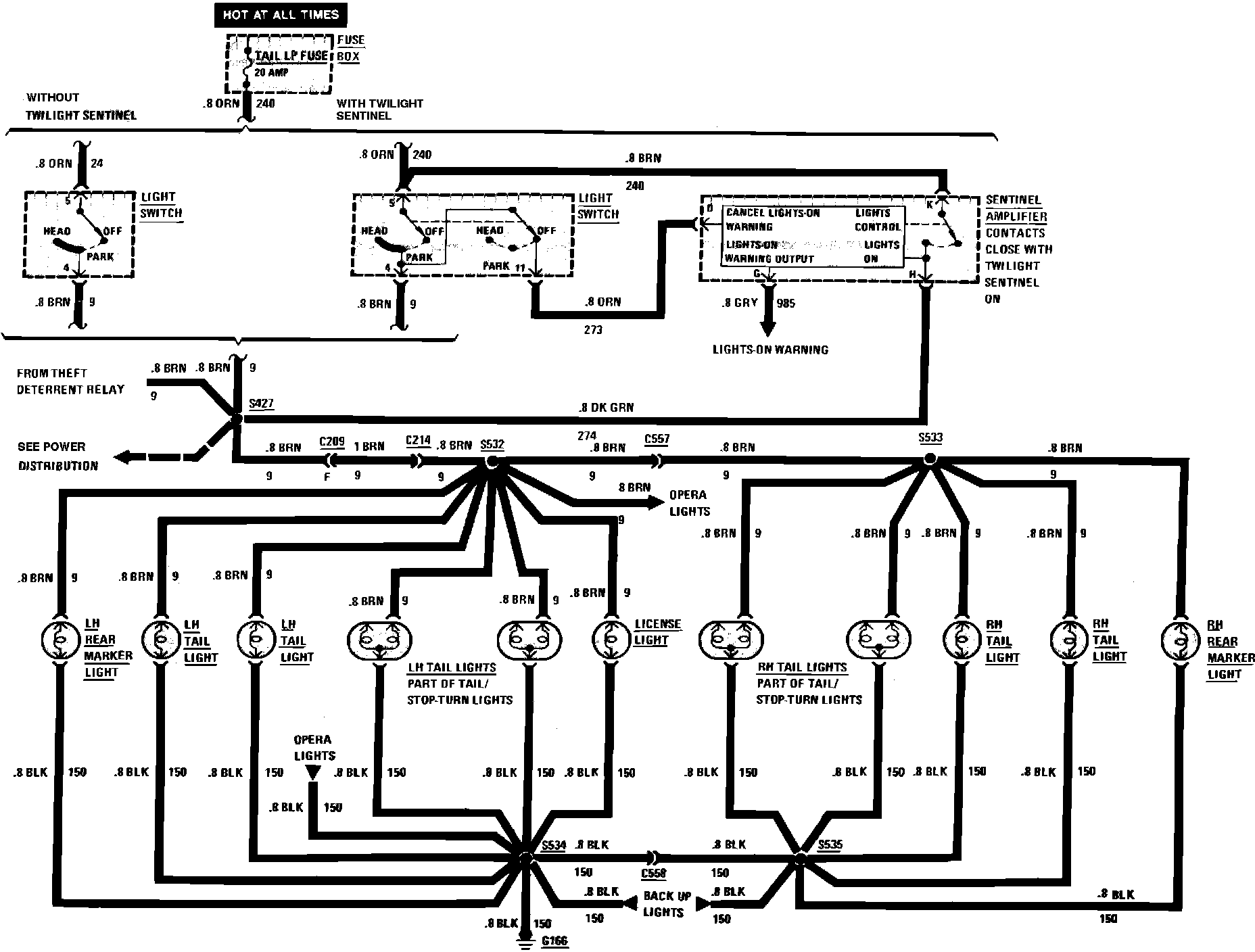

License, Rear Marker & Tail Lamp Wiring Circuit:
