Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Lighting and Horns
>>
Marker Lamp
>>
License Plate, Rear Marker & Tail Lamps
>>
Wagon
Wagon

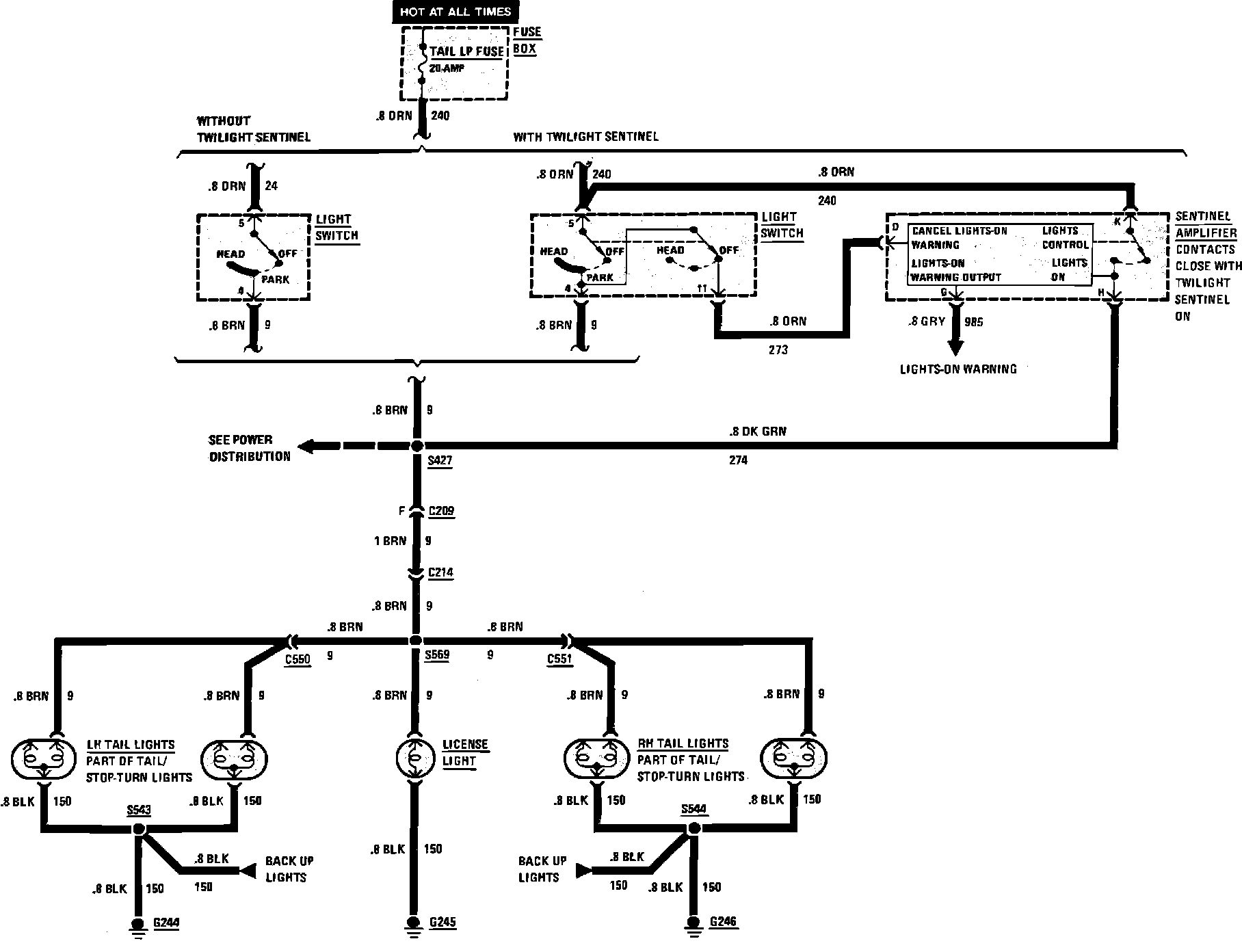

License, Rear Marker & Tail Lamp Wiring Circuit:
