Radio, Stereo, and Compact Disc

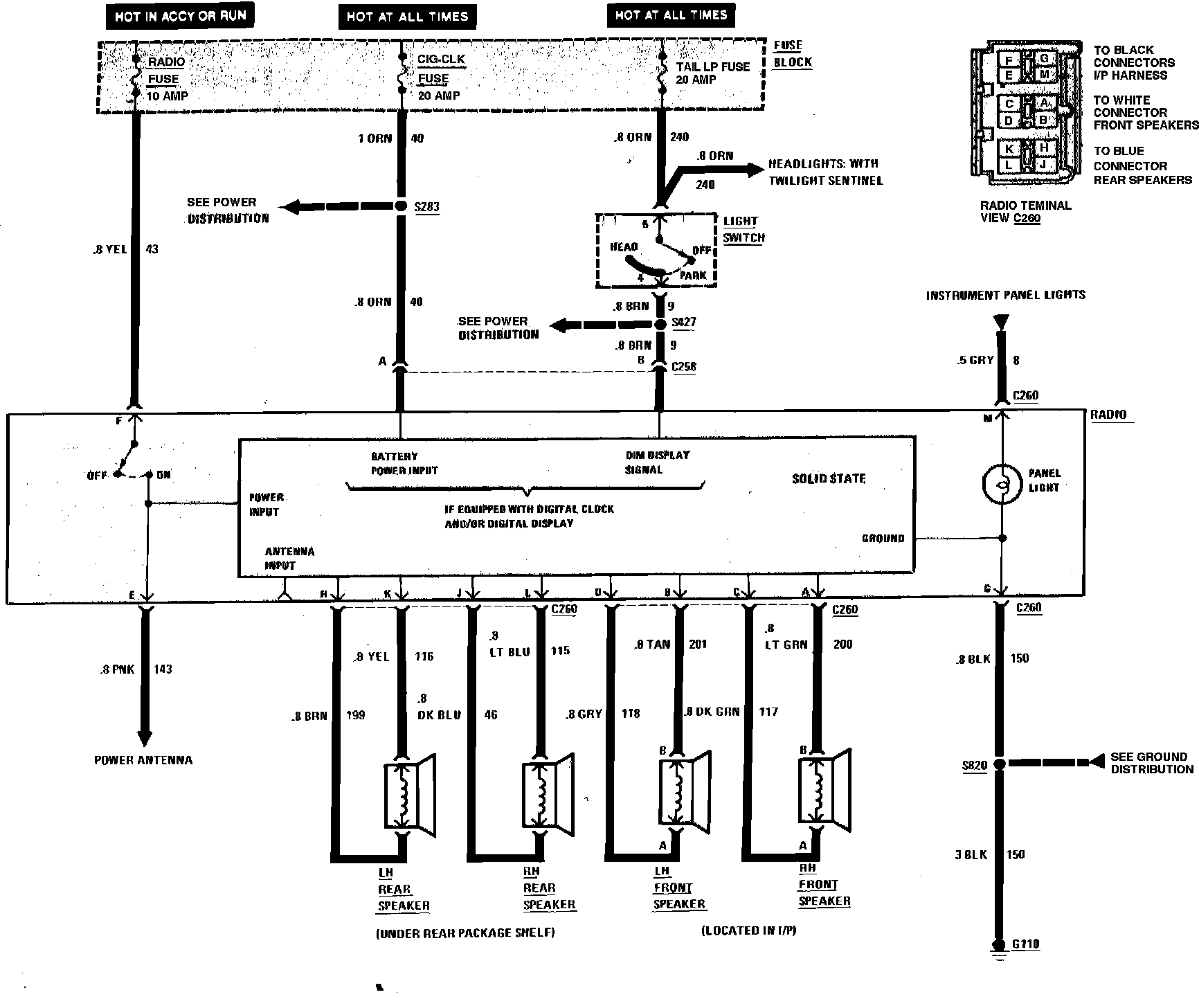

Radio Wiring Circuit (Less CB):

Radio Wiring Circuit (With CB):

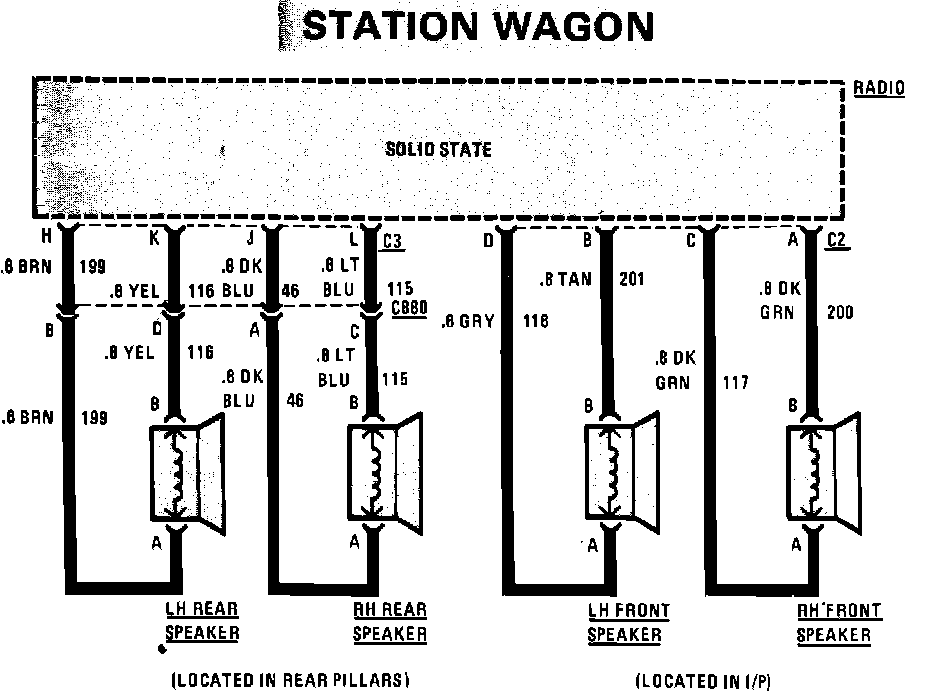

Radio Wiring Circuit:
