Seats
>>
Power Seat Wiring Circuit
>>
6 Way (Part 1 of 2)
6 Way (Part 1 of 2)

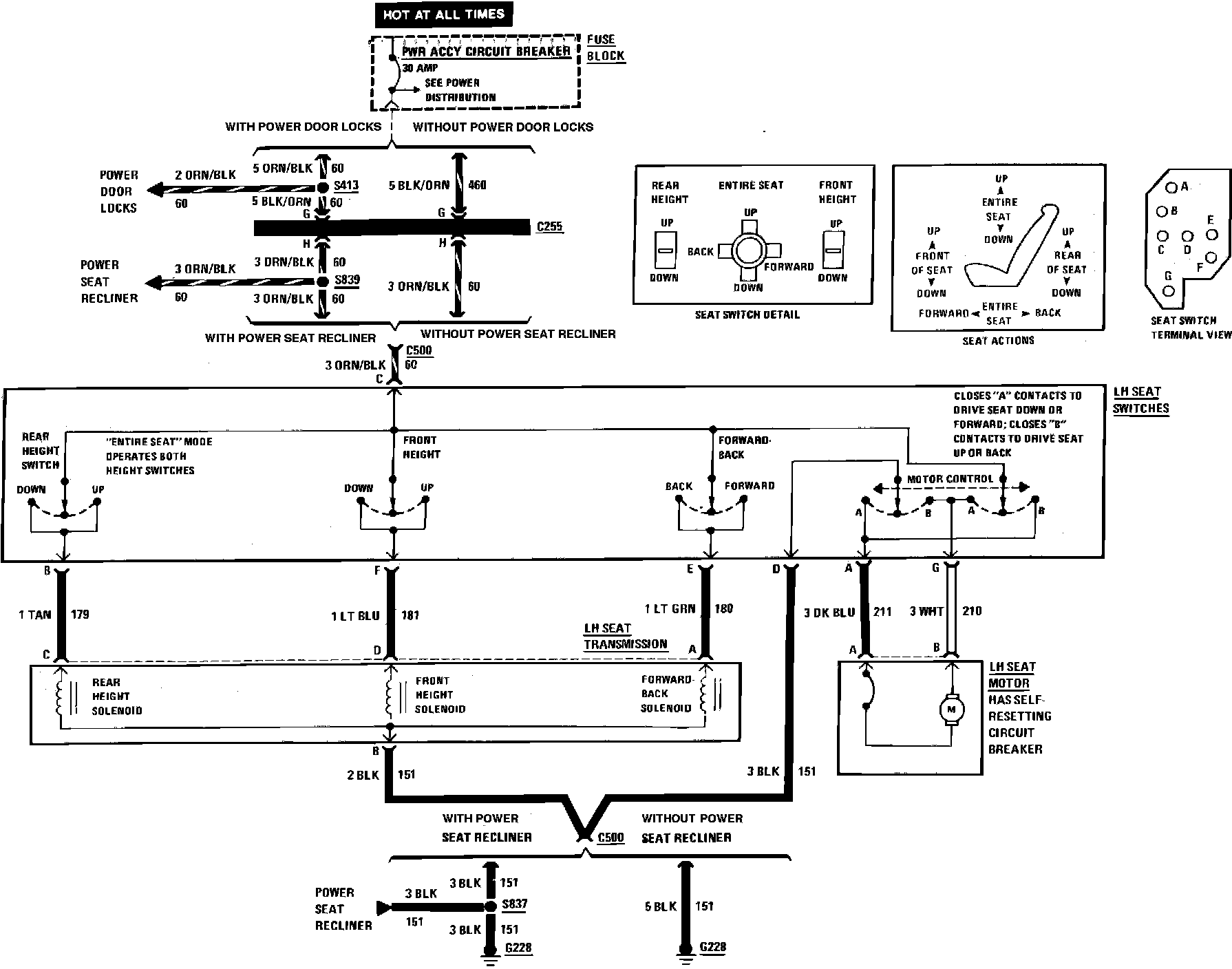

Power Seat Wiring Circuit (Left Side) W/6 Way Seat:
