Power Seat Wiring Circuit
>>
6 Way (Part 2 of 2)
6 Way (Part 2 of 2)

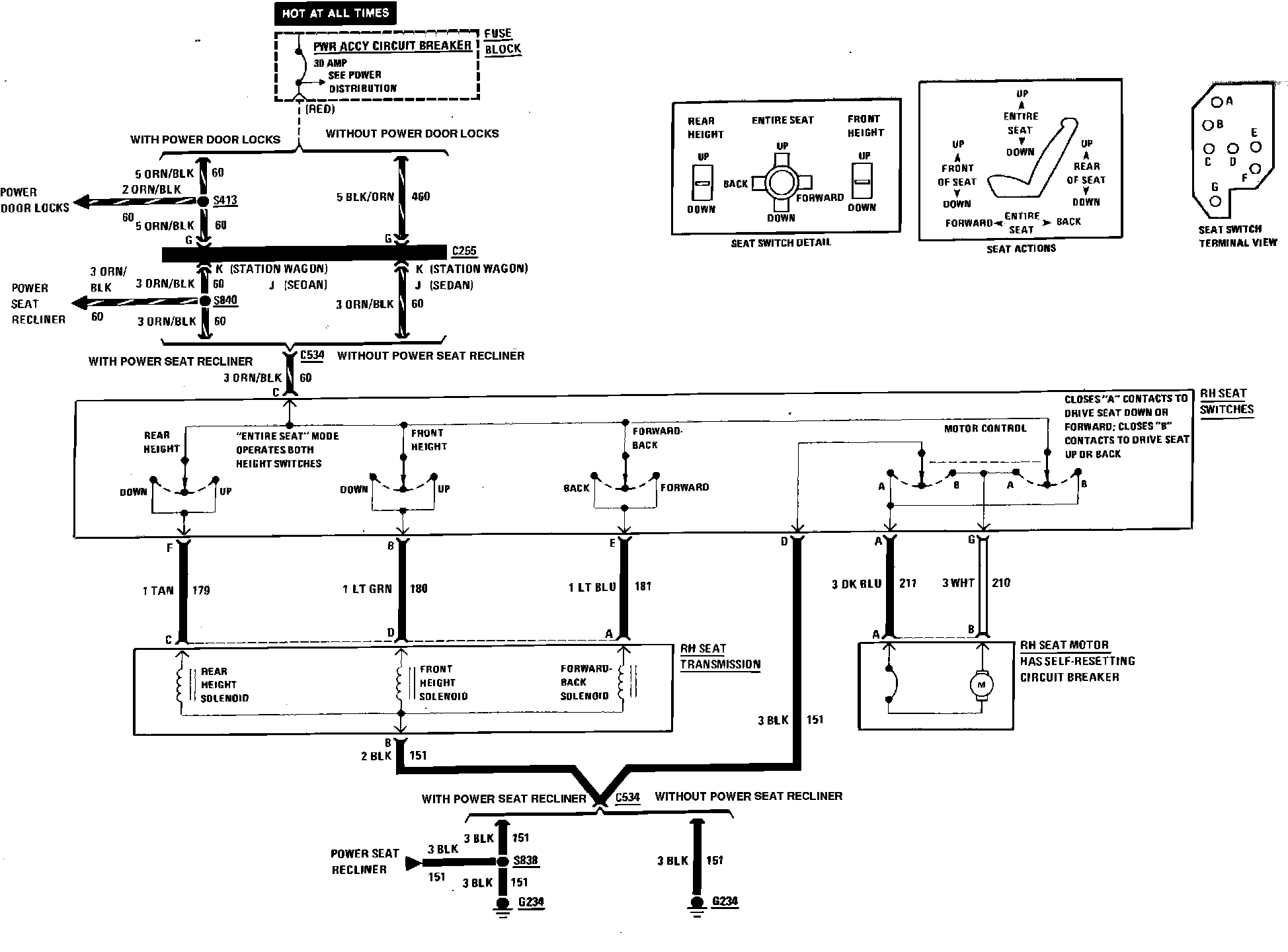

Power Seat (Six Way) Wiring Circuit (Right Hand Side):
