Home >> Buick >> 1985 >> LeSabre V6-231 3.8L >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Vacuum and Vapor Hose Diagrams >> With Manual A/C

With Manual A/C

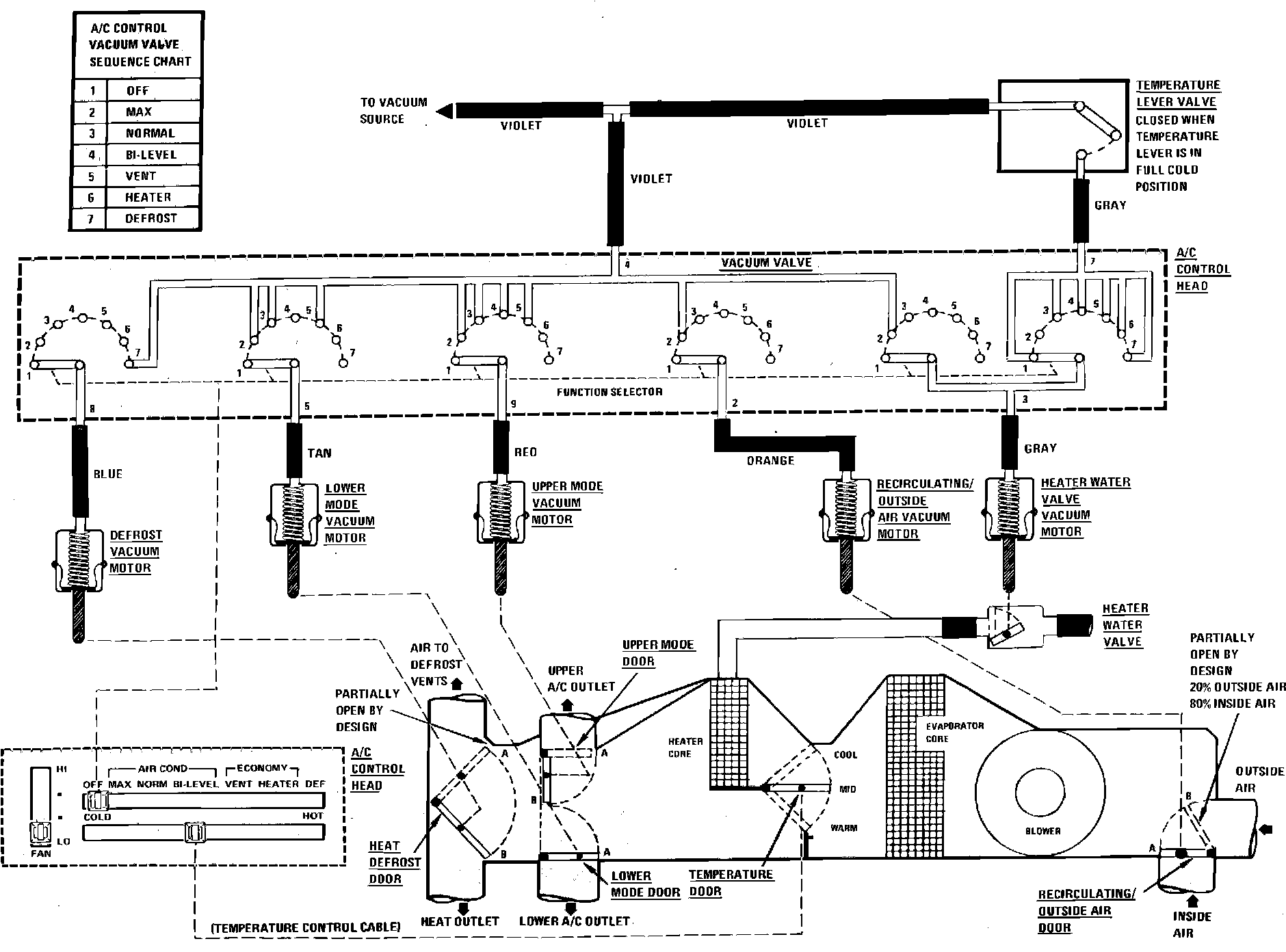

Air Conditioning Vacuum Circuit (With Manual A/C):
