Ignition Key, Lights on & Seatbelt

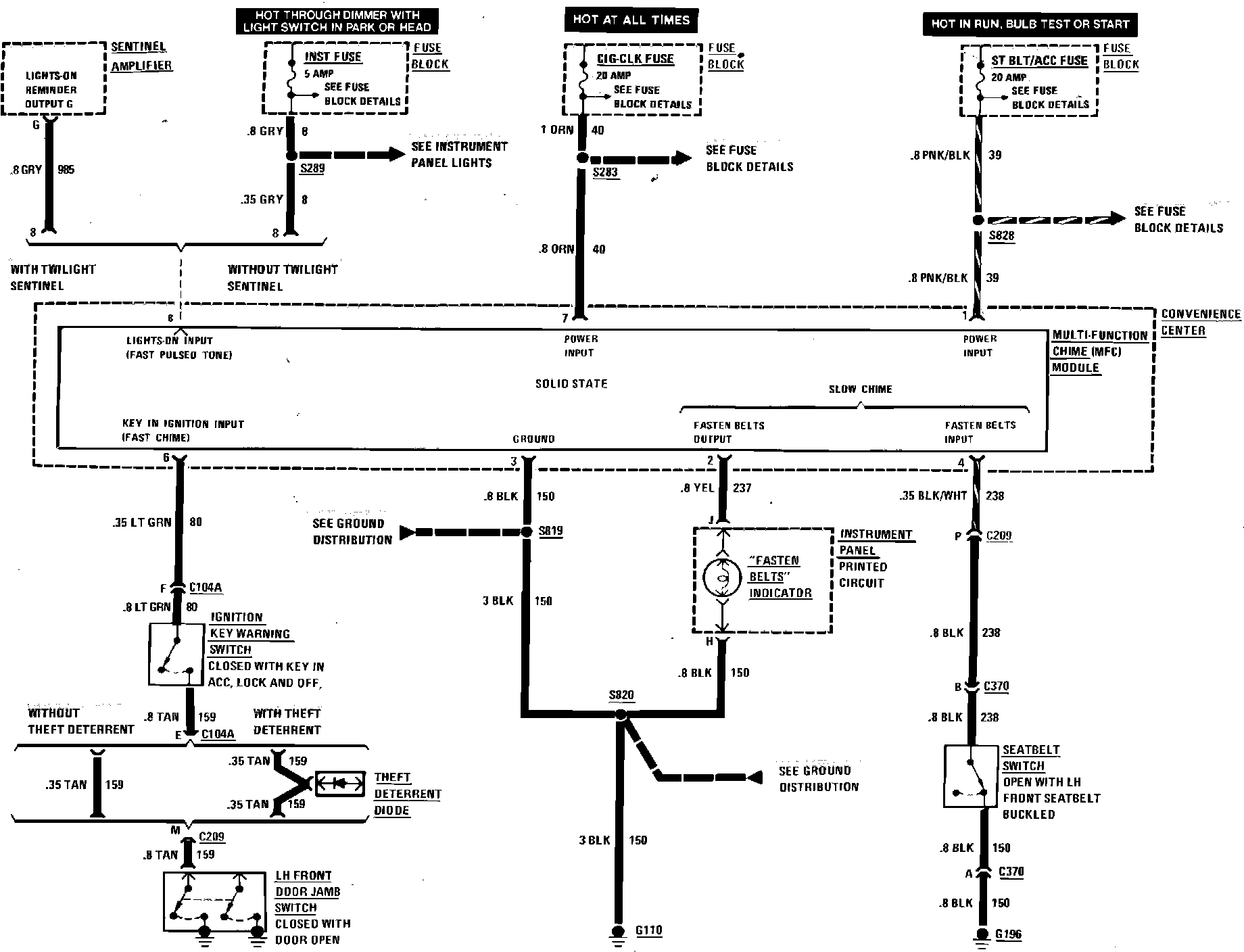

Instrument Panel Warning Indicator (Ignition Key, Lights On & Seatbelt) Wiring Circuit, With Chimes:
