Buick
>>
1985
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Courtesy Lamp
>>
Diagrams
>>
Electrical Diagrams
>>
Interior Lamps
>>
2 Door
2 Door

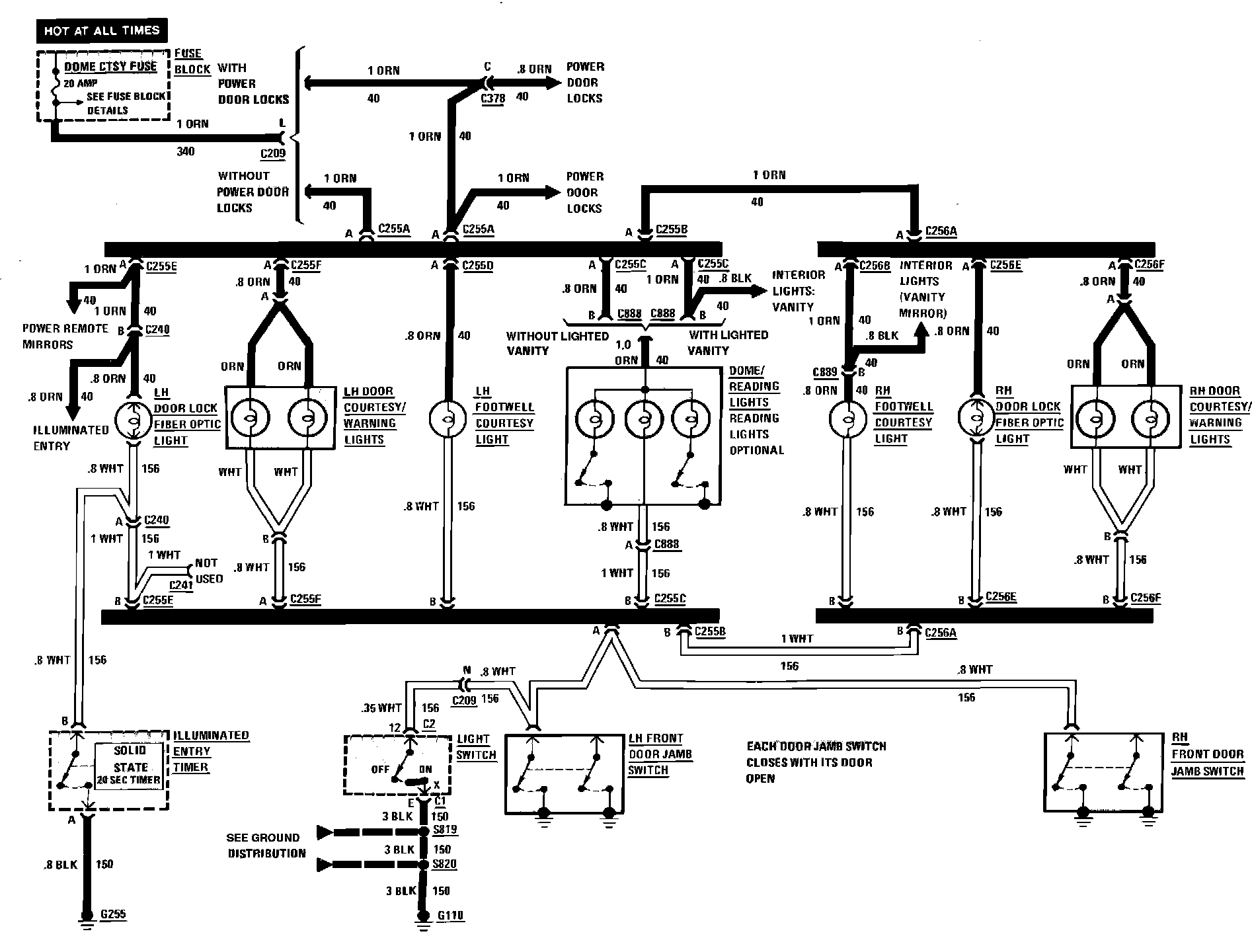

Interior Lights Wiring Circuit:
