Home
>>
Buick
>>
1985
>>
LeSabre V6-231 3.8L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Power Distribution Wiring Circuit
>>
Less Twilight Sentinel (Part 1 of 2)
Less Twilight Sentinel (Part 1 of 2)

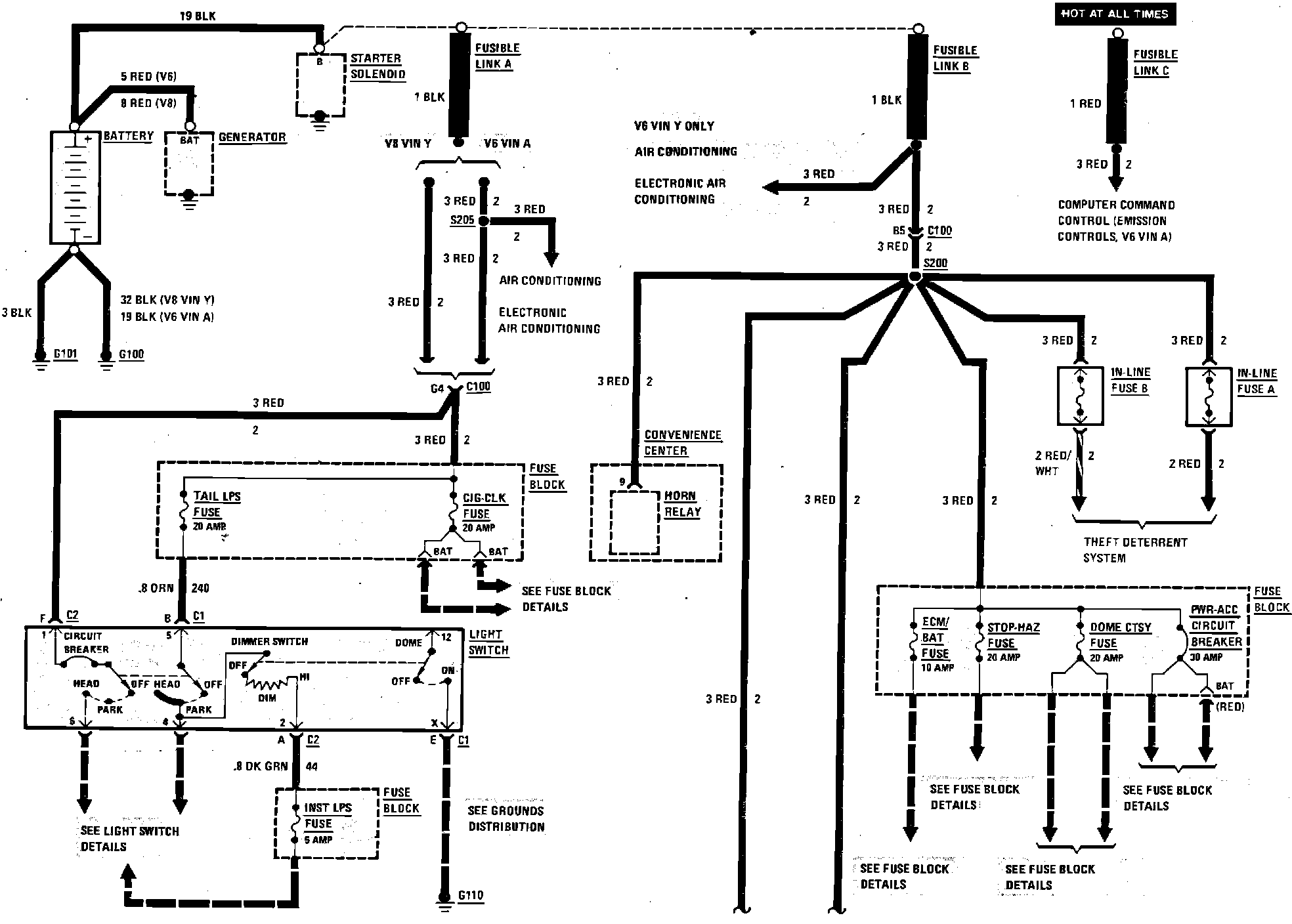

Power Distribution (Less Twilight Sentinel):
