Power Distribution Wiring Circuit
>>

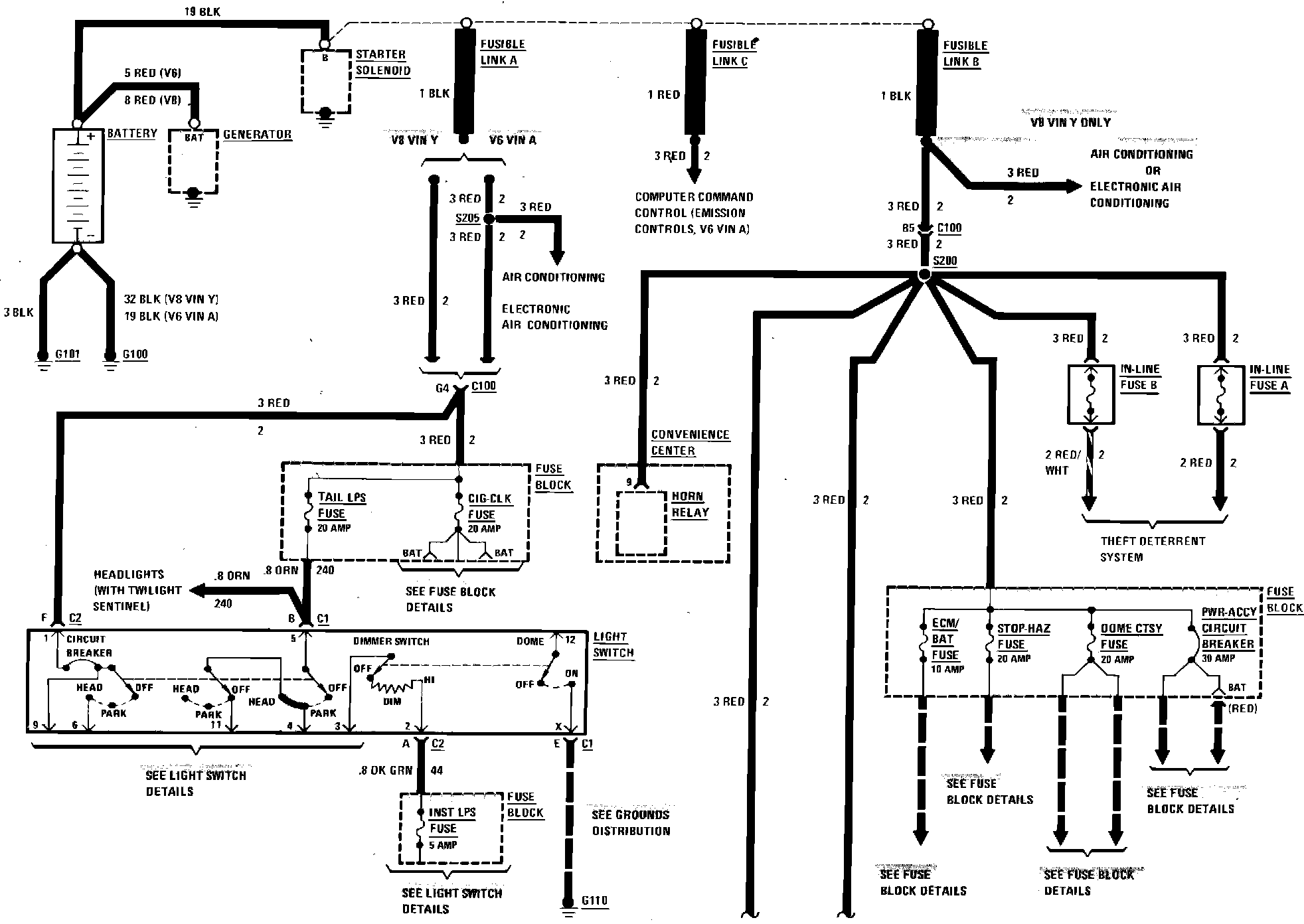

With Twilight Sentinel (Part 1 of 2)
With Twilight Sentinel (Part 1 of 2)
Power Distribution (With Twilight Sentinel):
