Home >> Buick >> 1985 >> LeSabre V6-231 3.8L >> Repair and Diagnosis >> Wiper and Washer Systems >> Diagrams >> Electrical Diagrams >> With Pulse

With Pulse

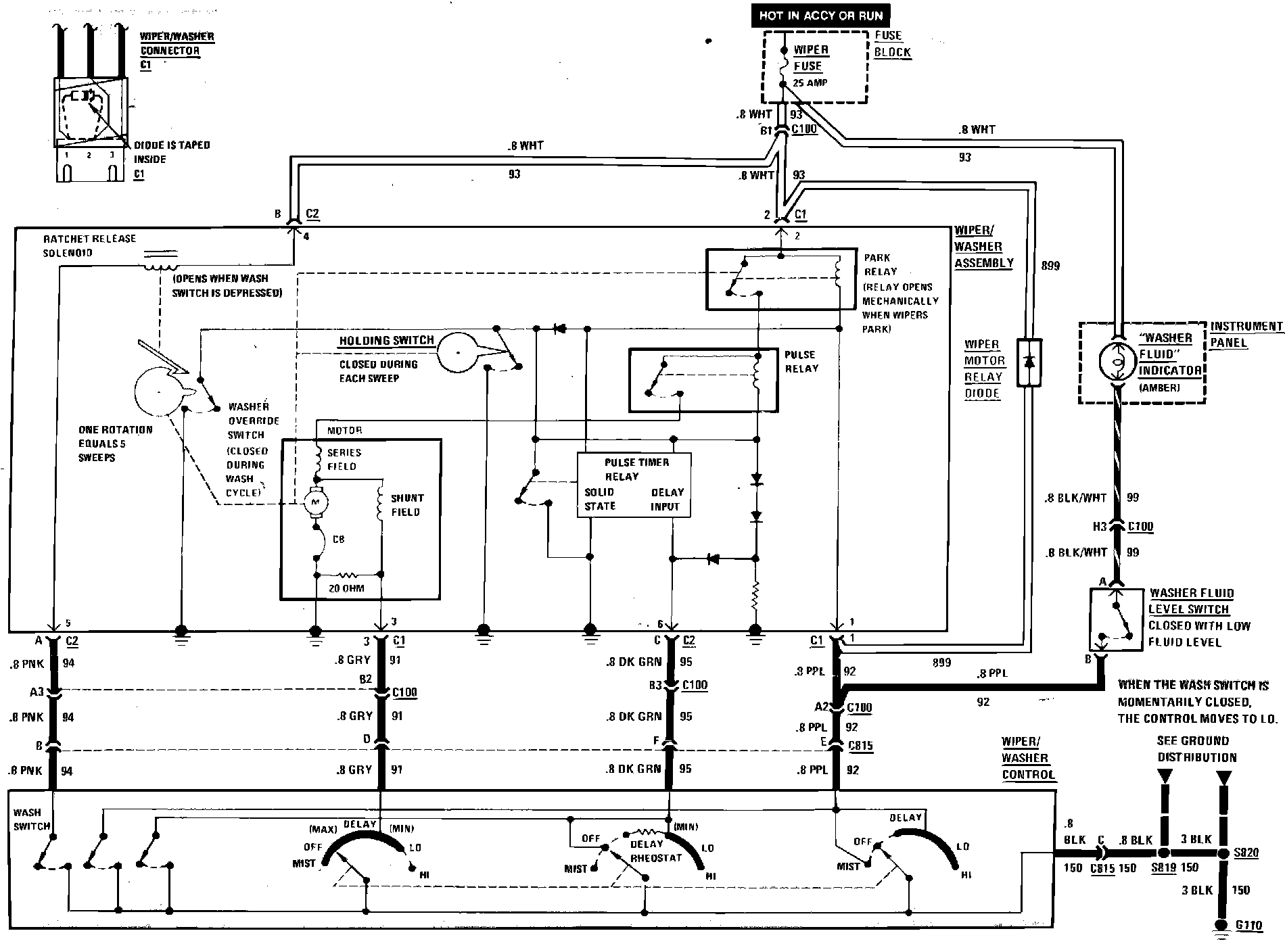

Wiper/Washer Wiring Circuit (With Pulse):
