Home
>>
Buick
>>
1985
>>
Regal V6-231 3.8L Turbo VIN 9 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With Port Fuel Injection
With Port Fuel Injection

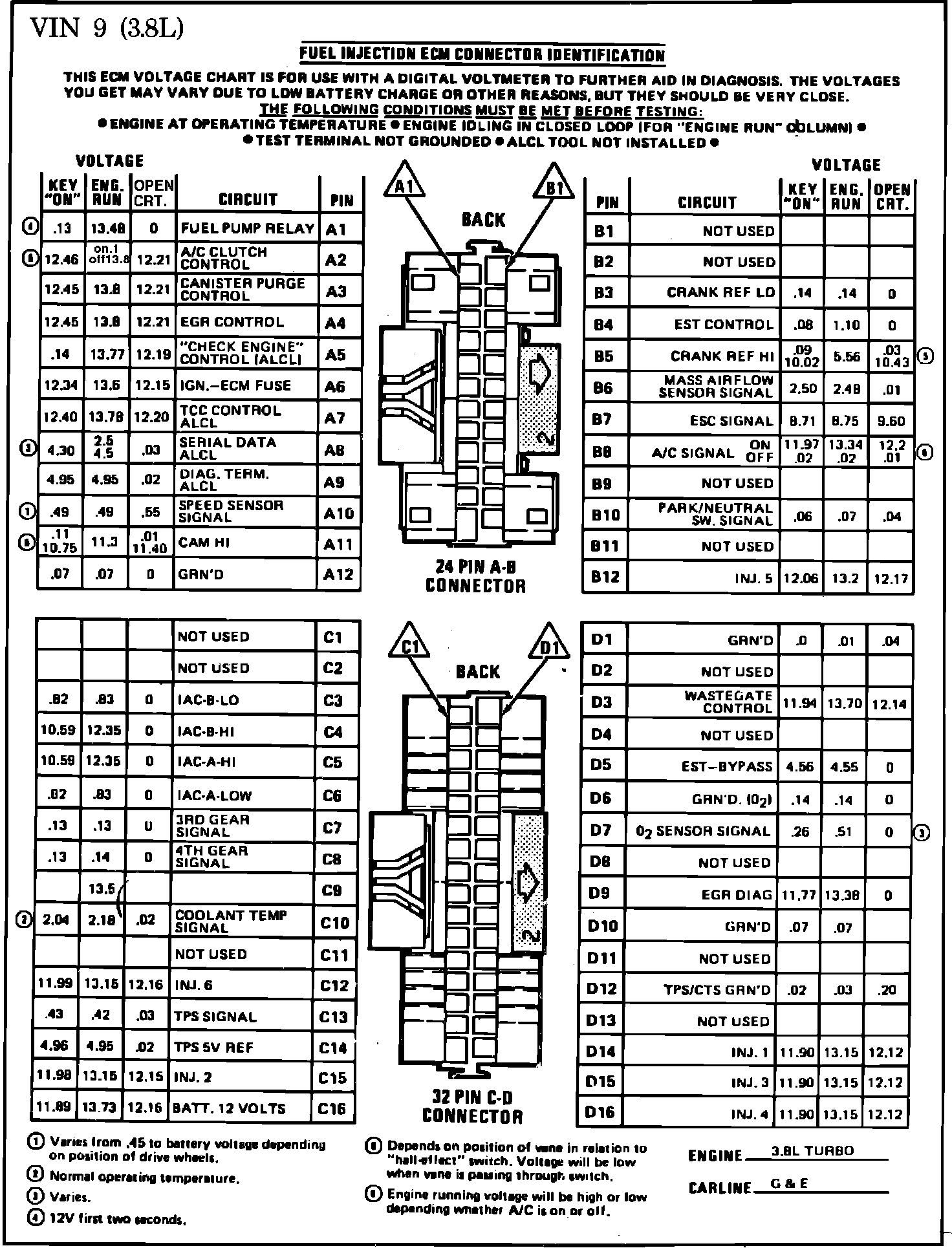

Fig. 020 ECM Connector Terminal Identification & Voltage Specifications:
