Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Regal V6-231 3.8L Turbo VIN 9 FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
Emission Control Systems

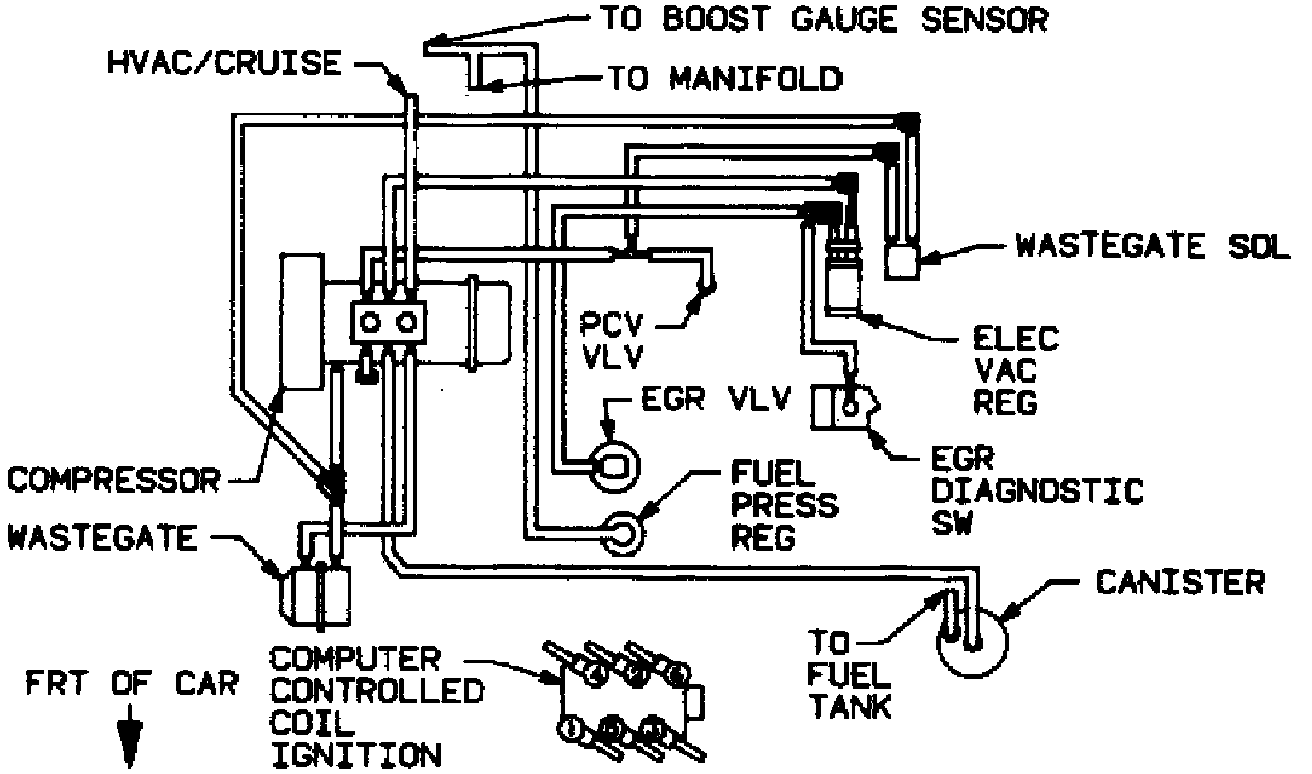

Vacuum Routing:
