Home >> Buick >> 1985 >> Regal V6-231 3.8L VIN A 2-bbl >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Electronic/Powertrain Control Module (ECM/PCM) >> VIN 9 (3.8L) Turbo

VIN 9 (3.8L) Turbo

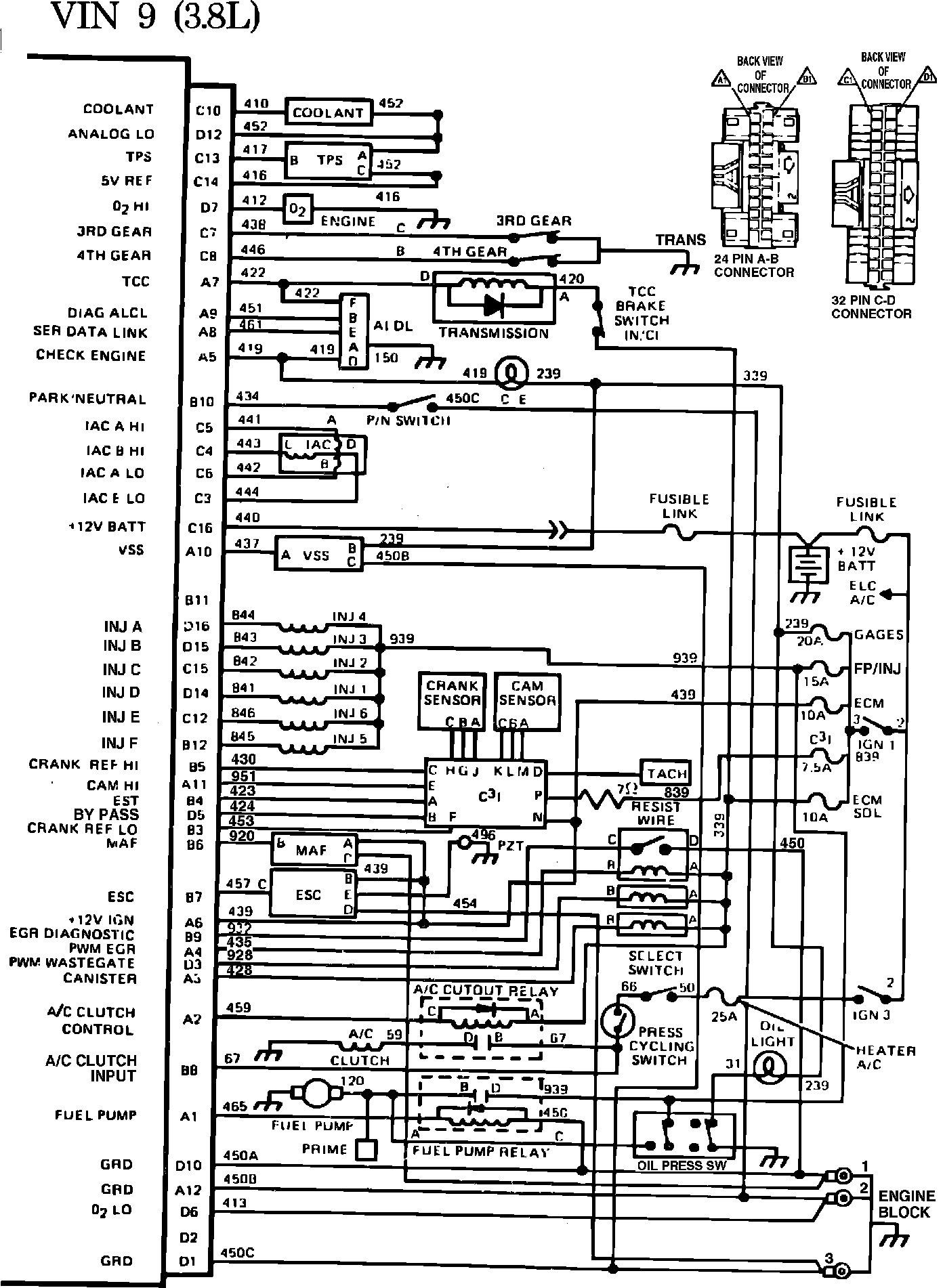

Fig. 021 ECM Wiring Diagram:
