Home
>>
Buick
>>
1985
>>
Regal V6-231 3.8L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Diagrams
>>
Vacuum and Vapor Hose Diagrams
>>
Emission Control Systems
Emission Control Systems

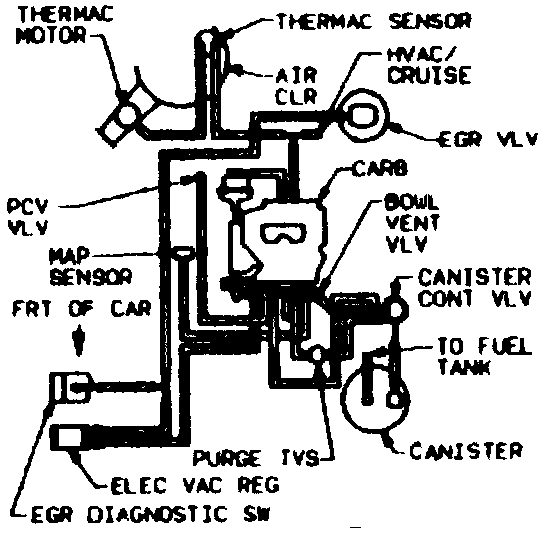

85 Buick 3.8 Vacuum Routing (Carbureted):
