Buick
>>
1985
>>
Regal V6-231 3.8L VIN A 2-bbl
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Spark Control
Spark Control

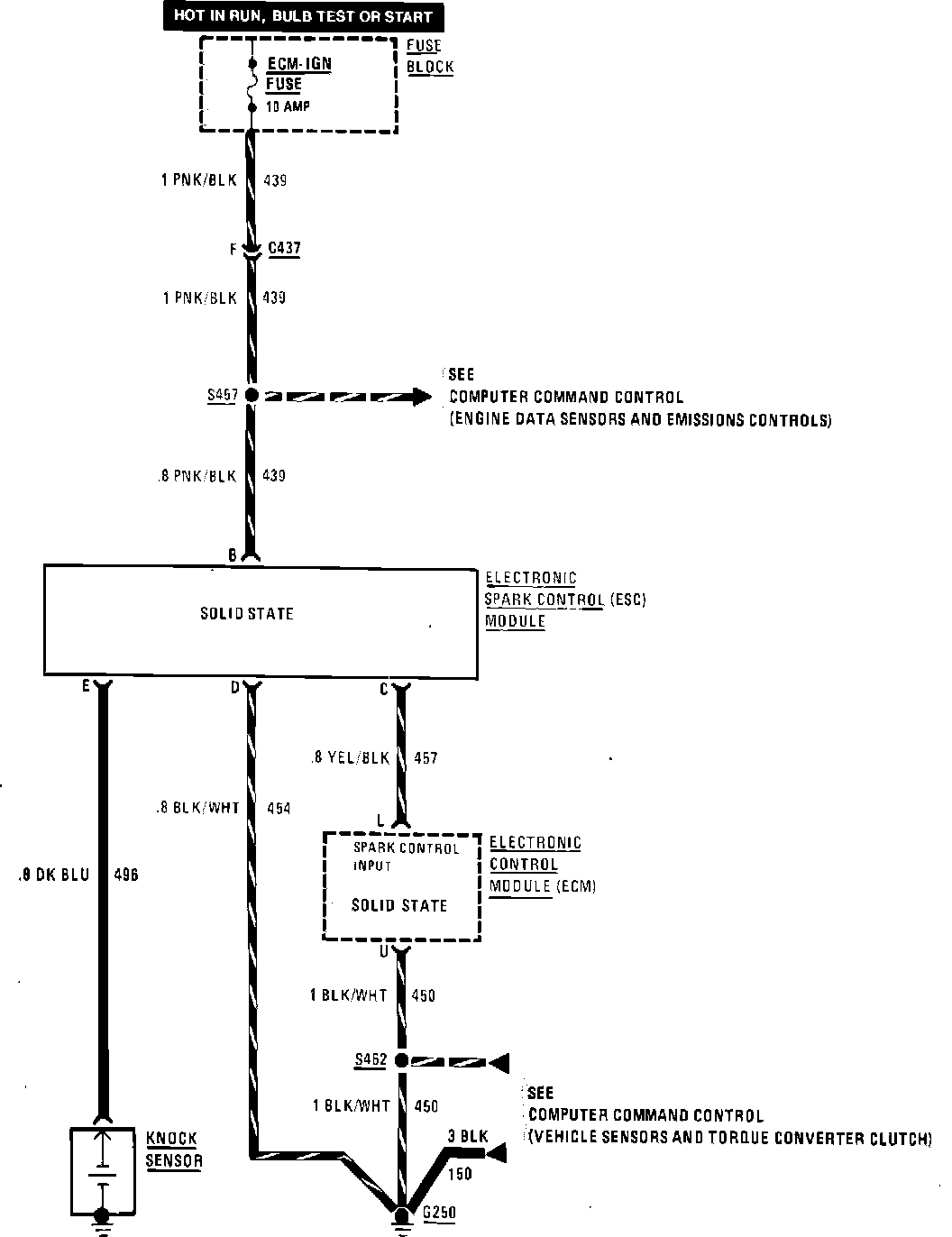

Computer Command Control (Spark Control) Wiring Circuit:
