Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Regal V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Radio, Stereo, and Compact Disc
>>
Diagrams
>>
Electrical Diagrams
>>
With Mono System
With Mono System

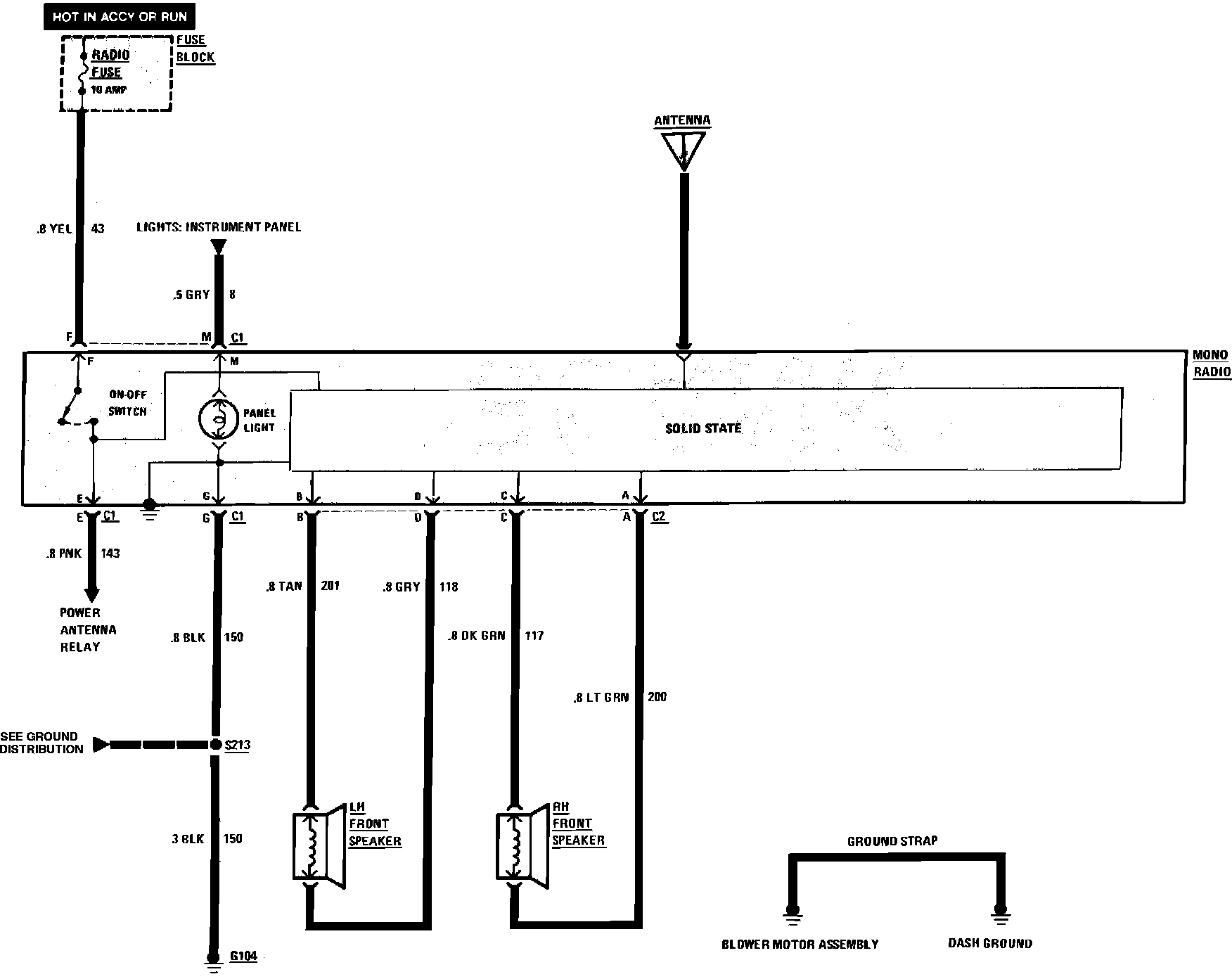

Radio Wiring Circuit (With Mono System):
