Brake Warning Indicator
>>
Brake System Wiring
Brake System Wiring

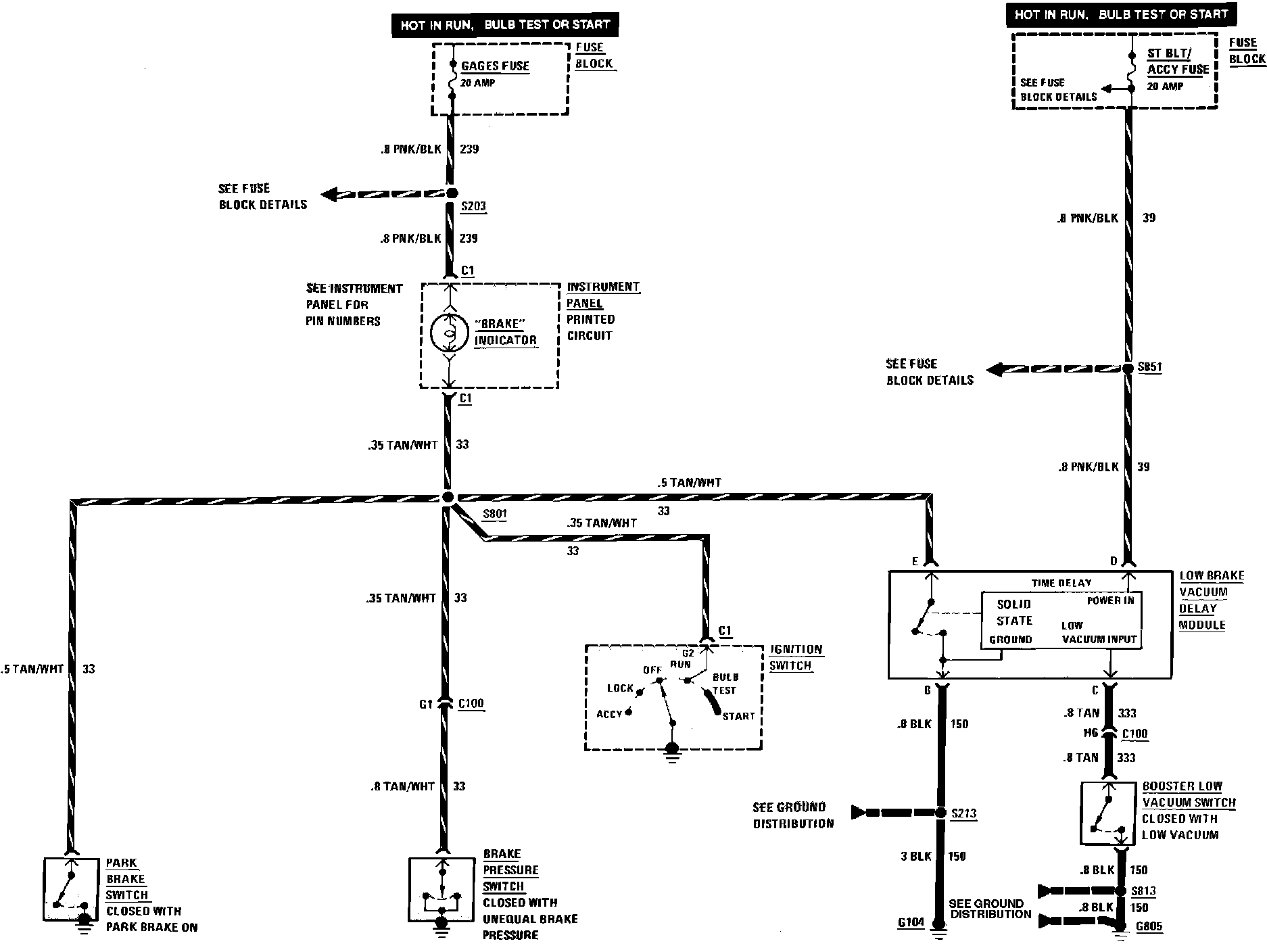

Brake Warning System Wiring Circuit:
