With Electronic A/C (Part 2 of 3)

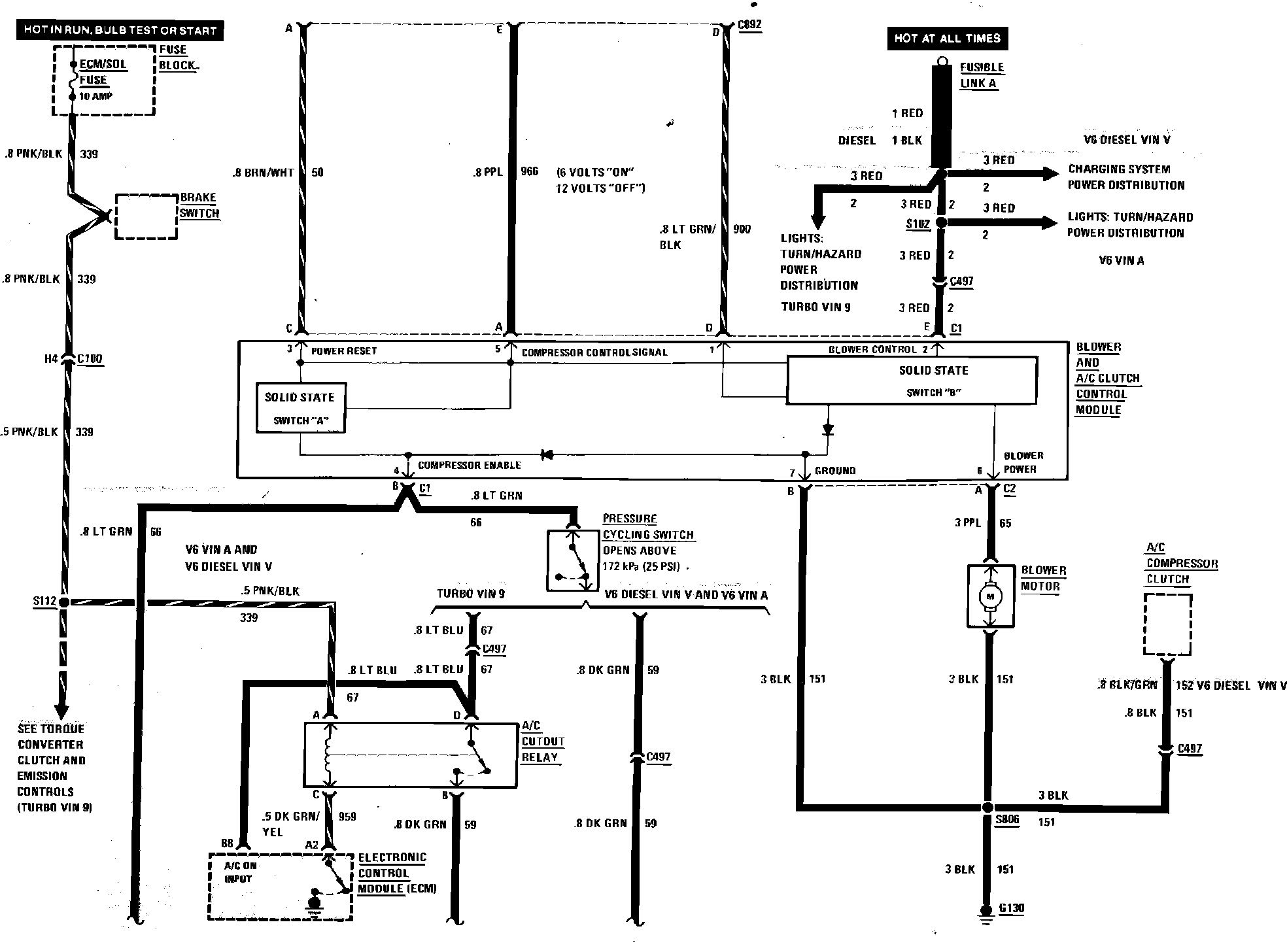

Air Conditioning Blower & Compressor Control Wiring Circuit (With Electronic A/C):
