Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>
Ignition Key, Lights On & Seat Belt Warning
>>
With Chimes
With Chimes

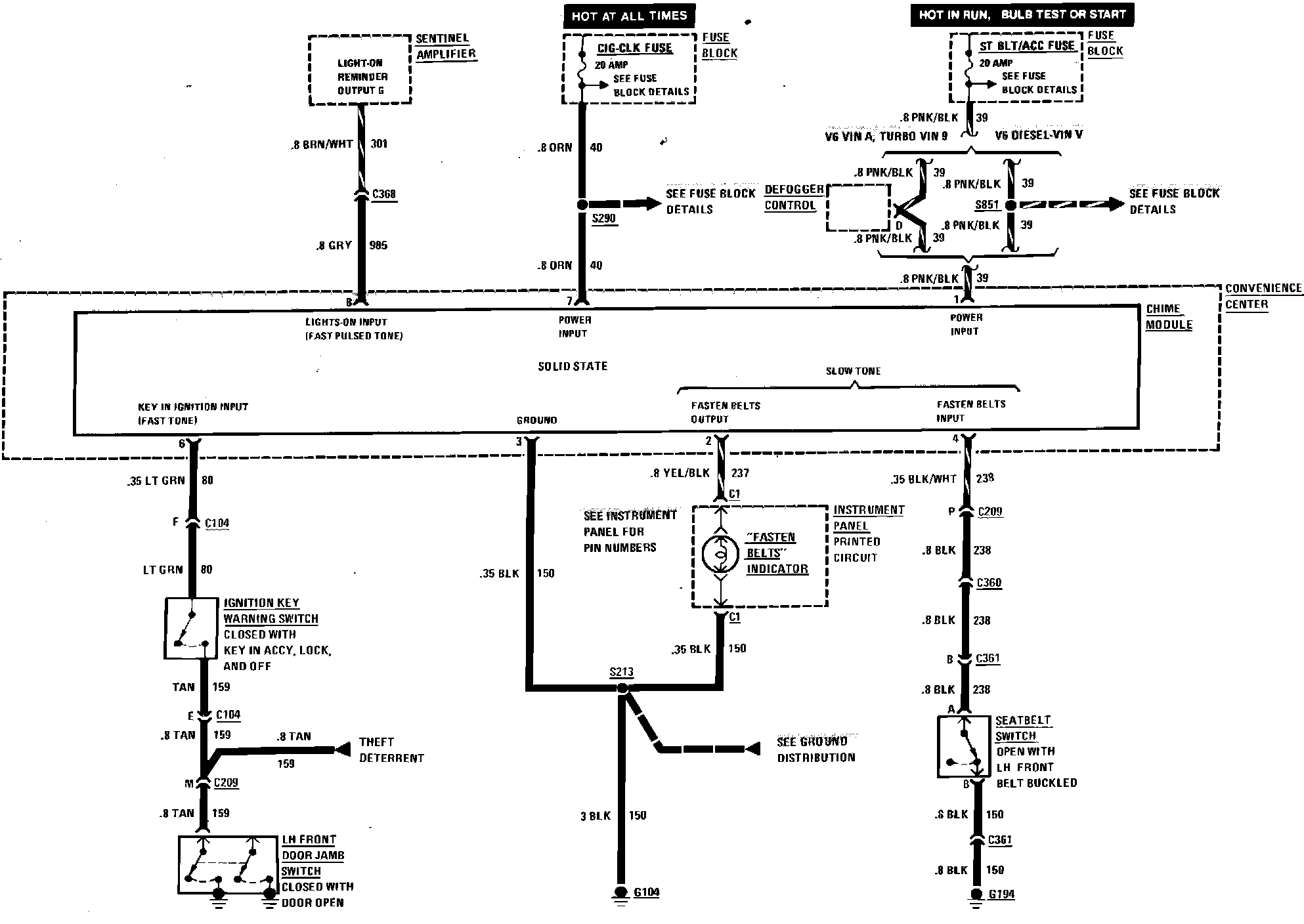

Ignition Key, Lights On & Seat Belt Warning Wiring Circuit (With Chimes):
