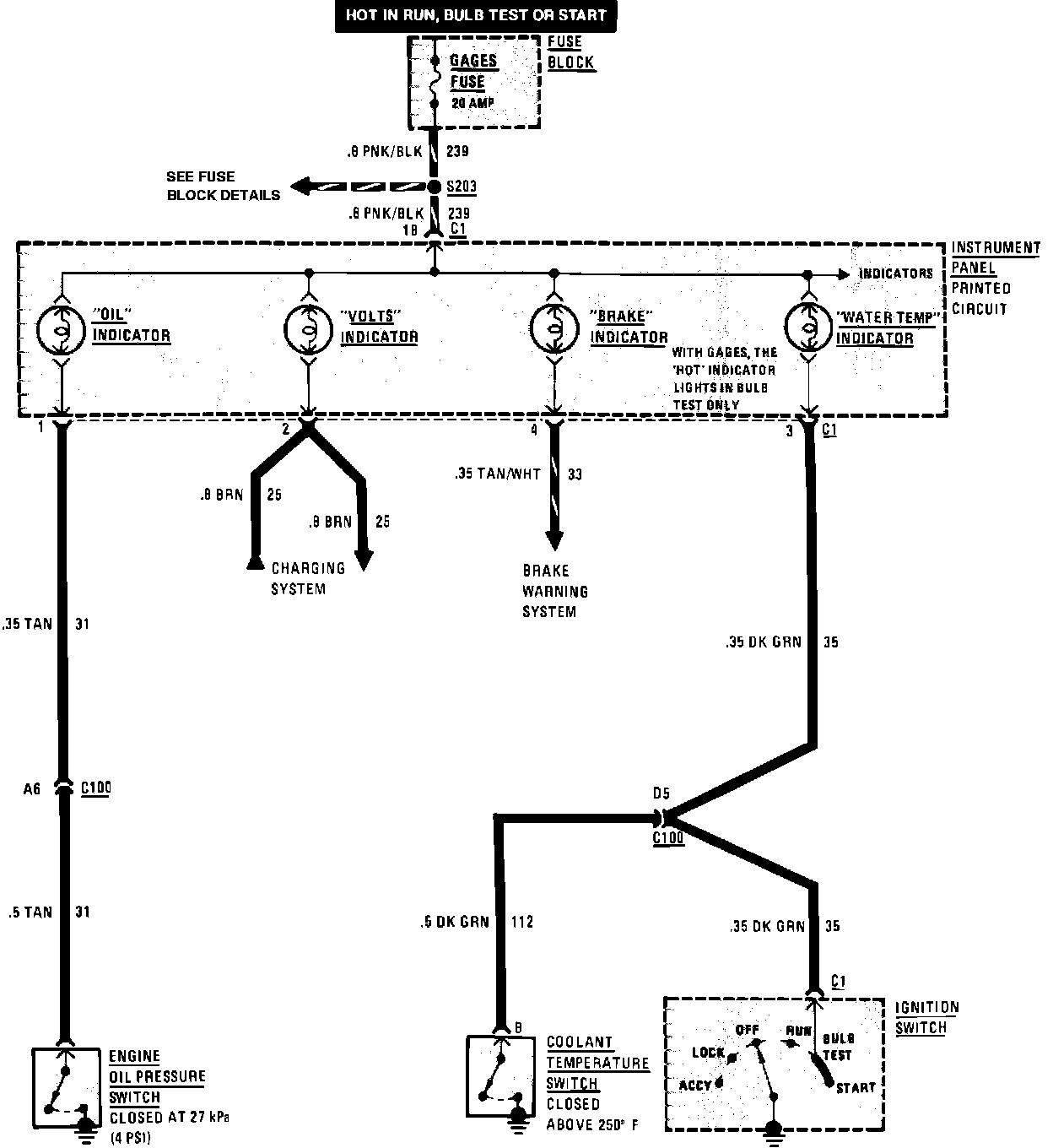

Instrument Panel Wiring Circuit (With Digital Cluster):



Instrument Panel Wiring Circuit (With Digital Cluster):



Instrument Panel Wiring Circuit (With Digital Cluster, Except Turbo):



Instrument Panel Wiring Circuit (With Digital Cluster, Except Turbo):
