Instrument Panel, Gauges and Warning Indicators
>>
System Diagram
>>

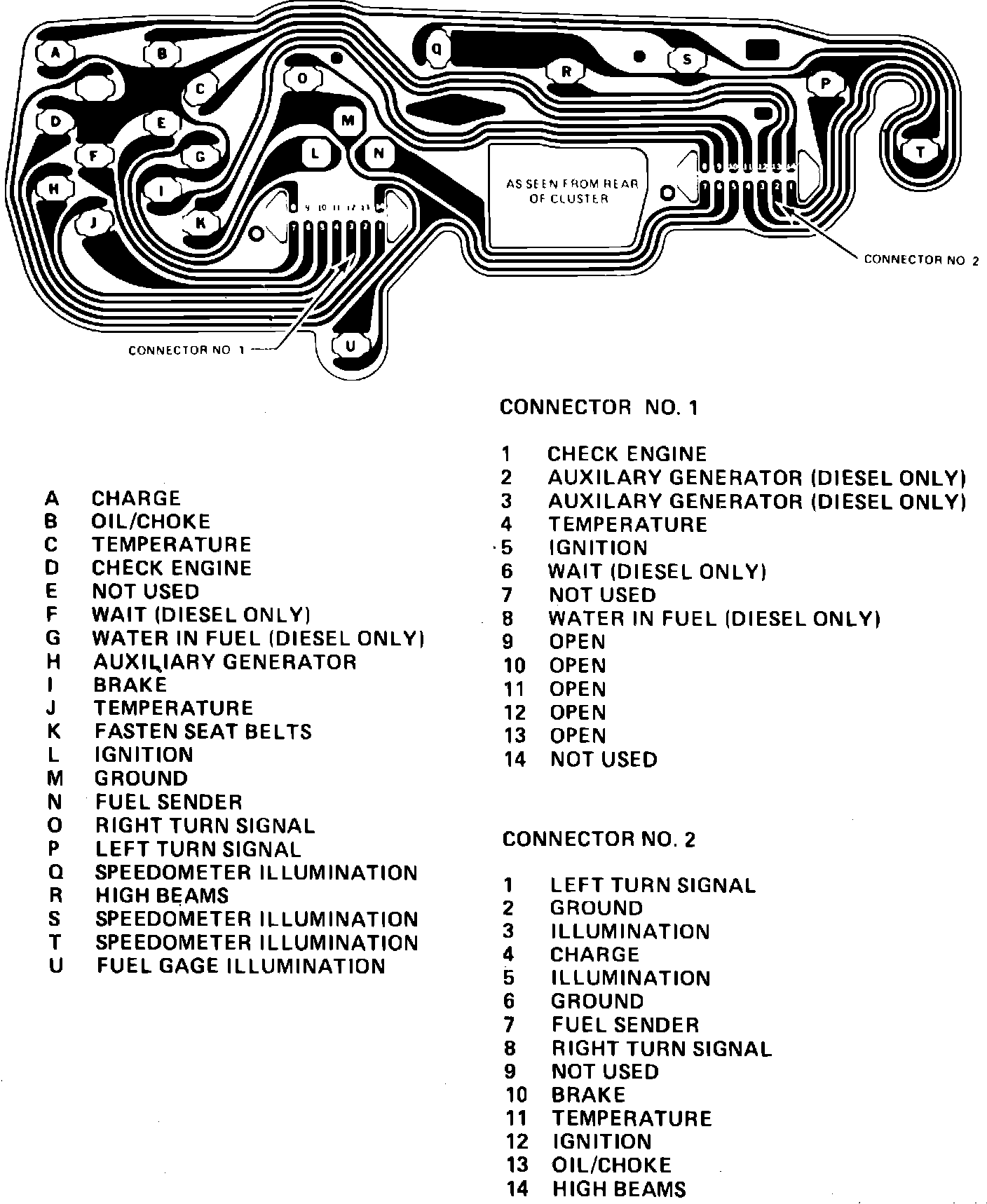

Printed Circuit (Typical)
>>
With Standard Cluster
With Standard Cluster
Printed Circuit (Typical) With Standard Cluster:
