Home >> Buick >> 1985 >> Regal V6-260 4.3L DSL >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Headlamp >> Headlamp Switch >> Part 1 of 2

Part 1 of 2

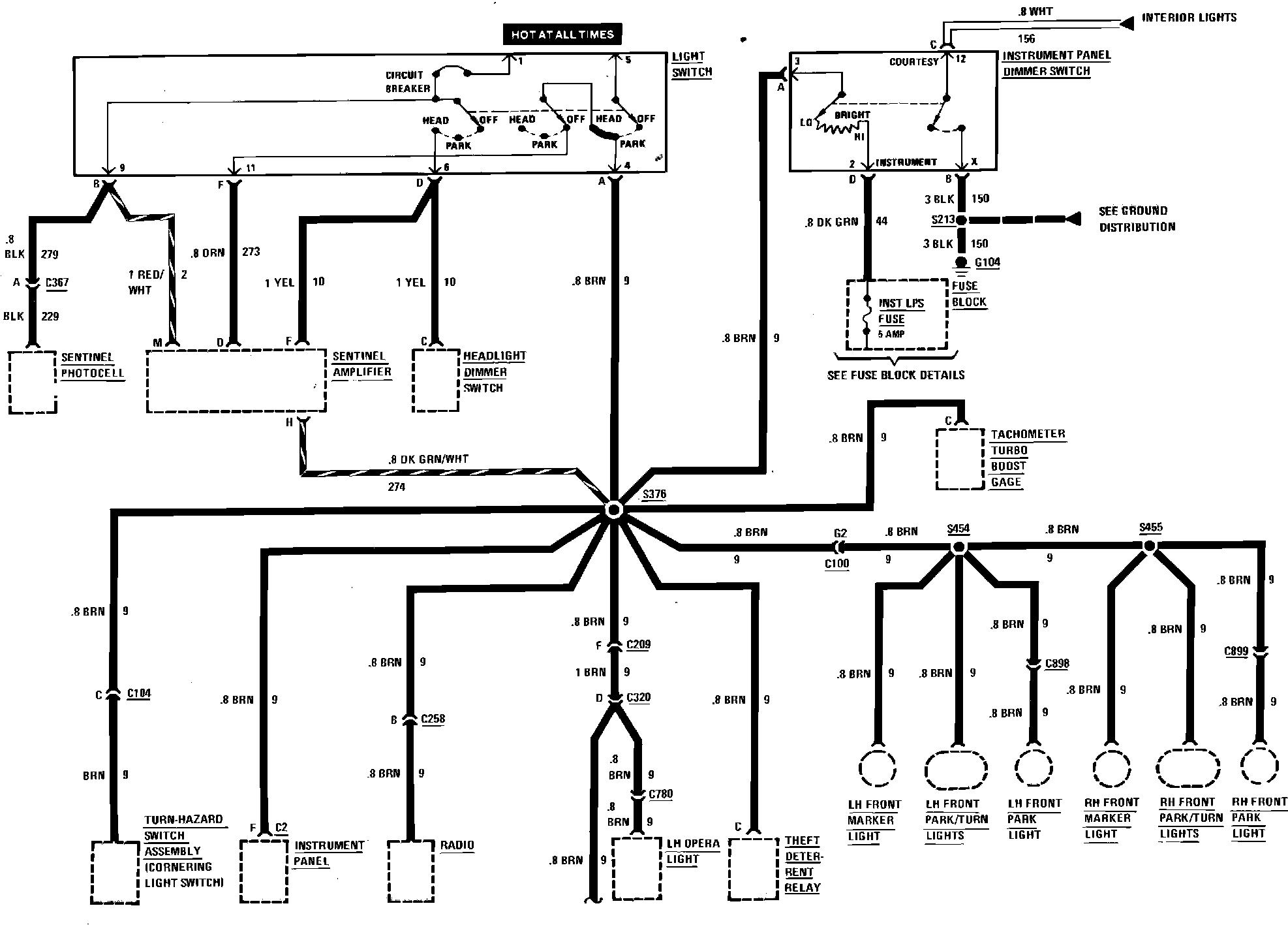

Light Switch Details:
