Lighting and Horns
>>
Marker Lamp
>>
License Plate, Rear Marker & Tail Lamps
License Plate, Rear Marker & Tail Lamps

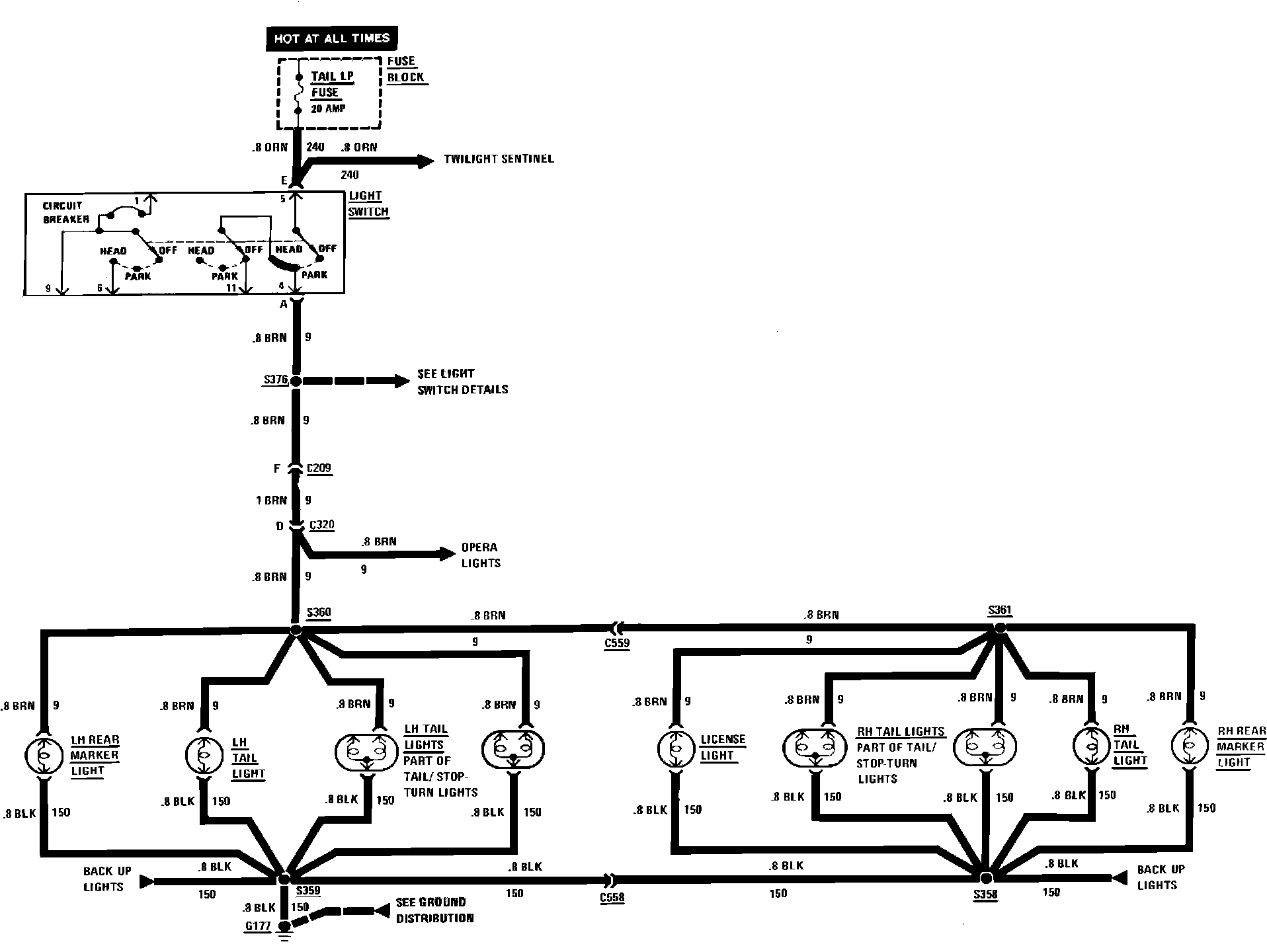

License, Rear Marker & Tail Lamp Wiring Circuit:
