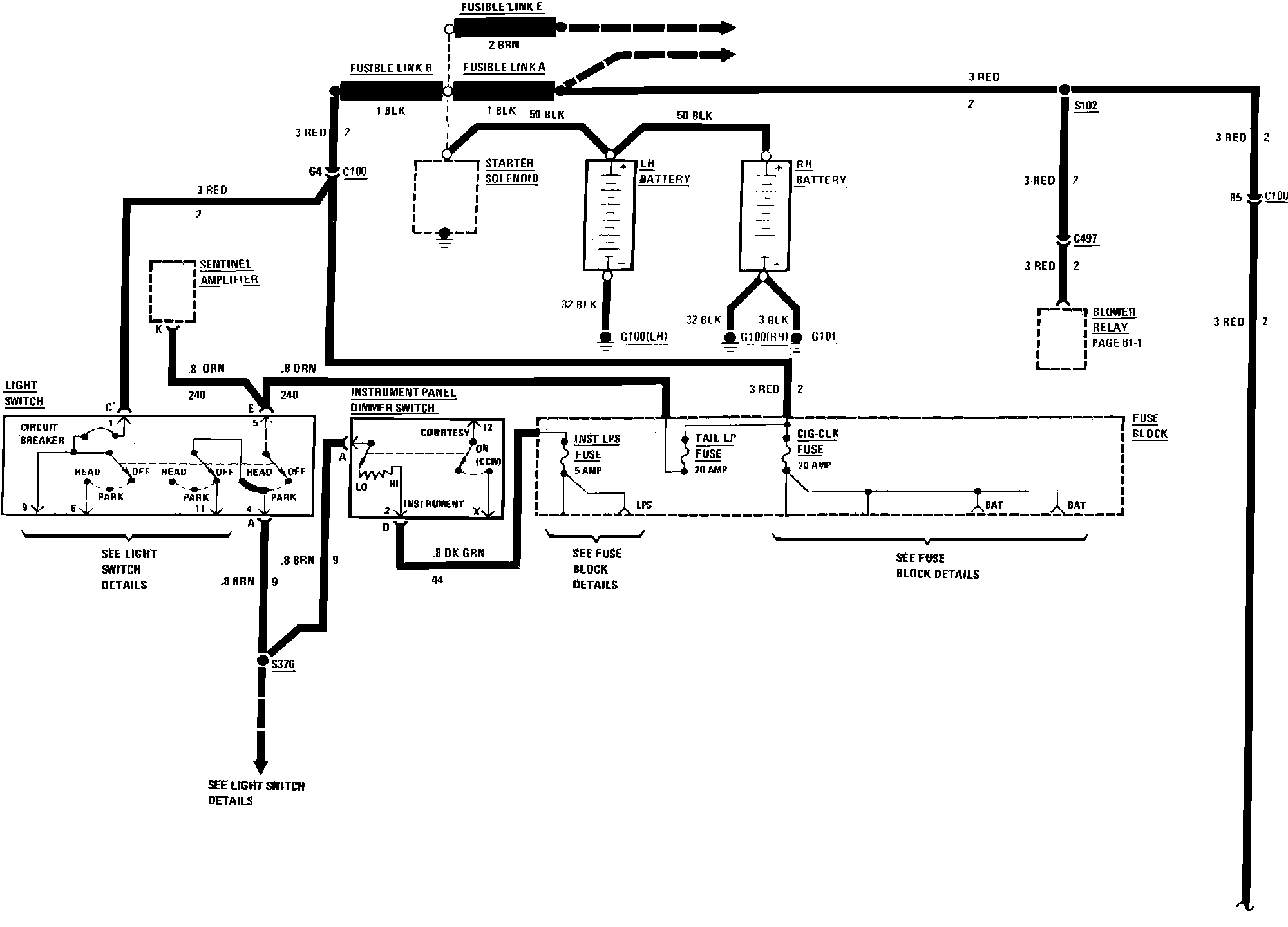

Power Distribution Wiring Circuit
>>
Part 1 of 2
Part 1 of 2
Power Distribution:
Power Distribution:
