Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Regal V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Wiper and Washer Systems
>>
With Pulse
With Pulse

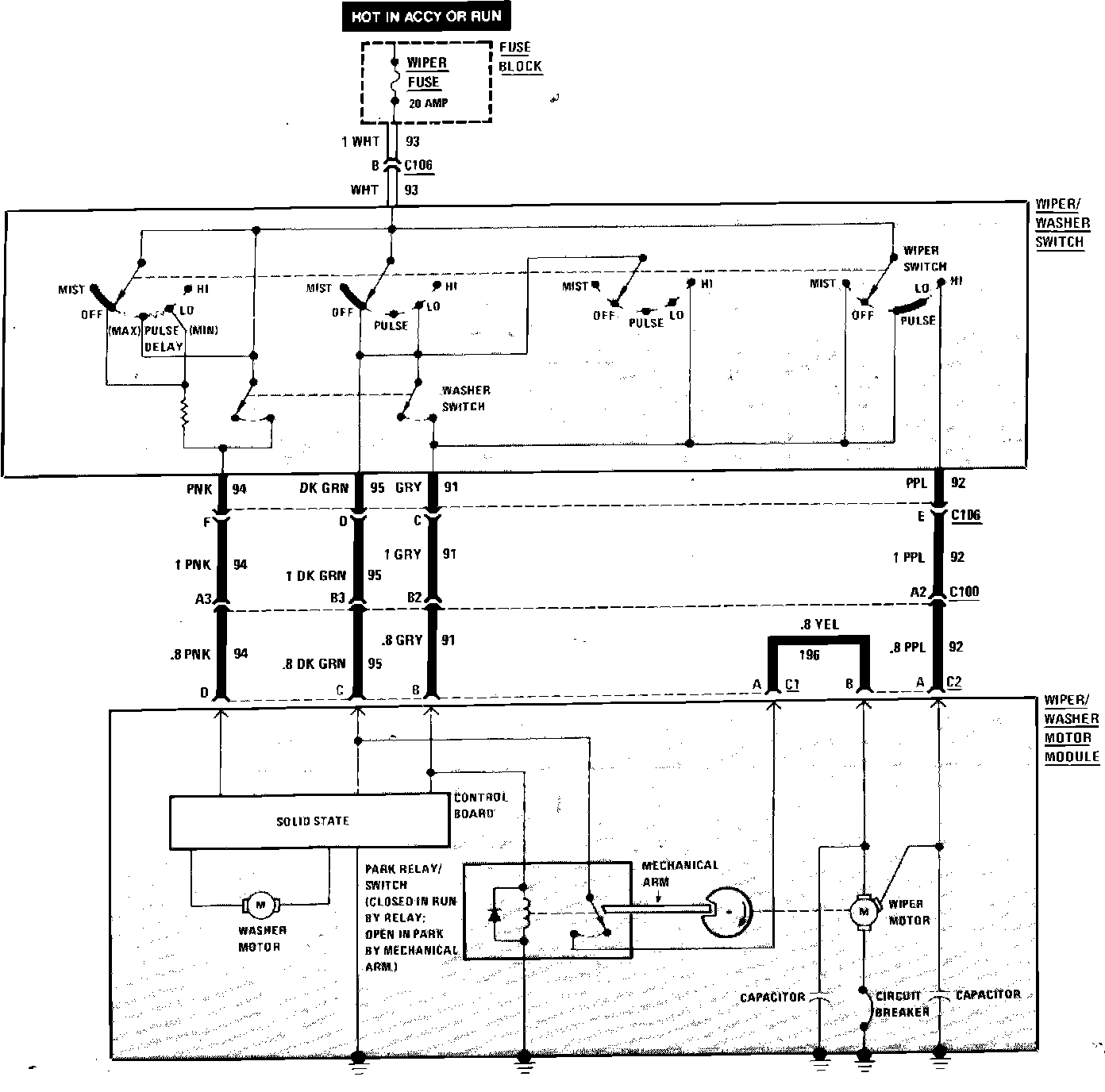

Wiper/Washer Wiring Circuit (With Pulse):
