Less Electronic A/C (Part 1 of 2)

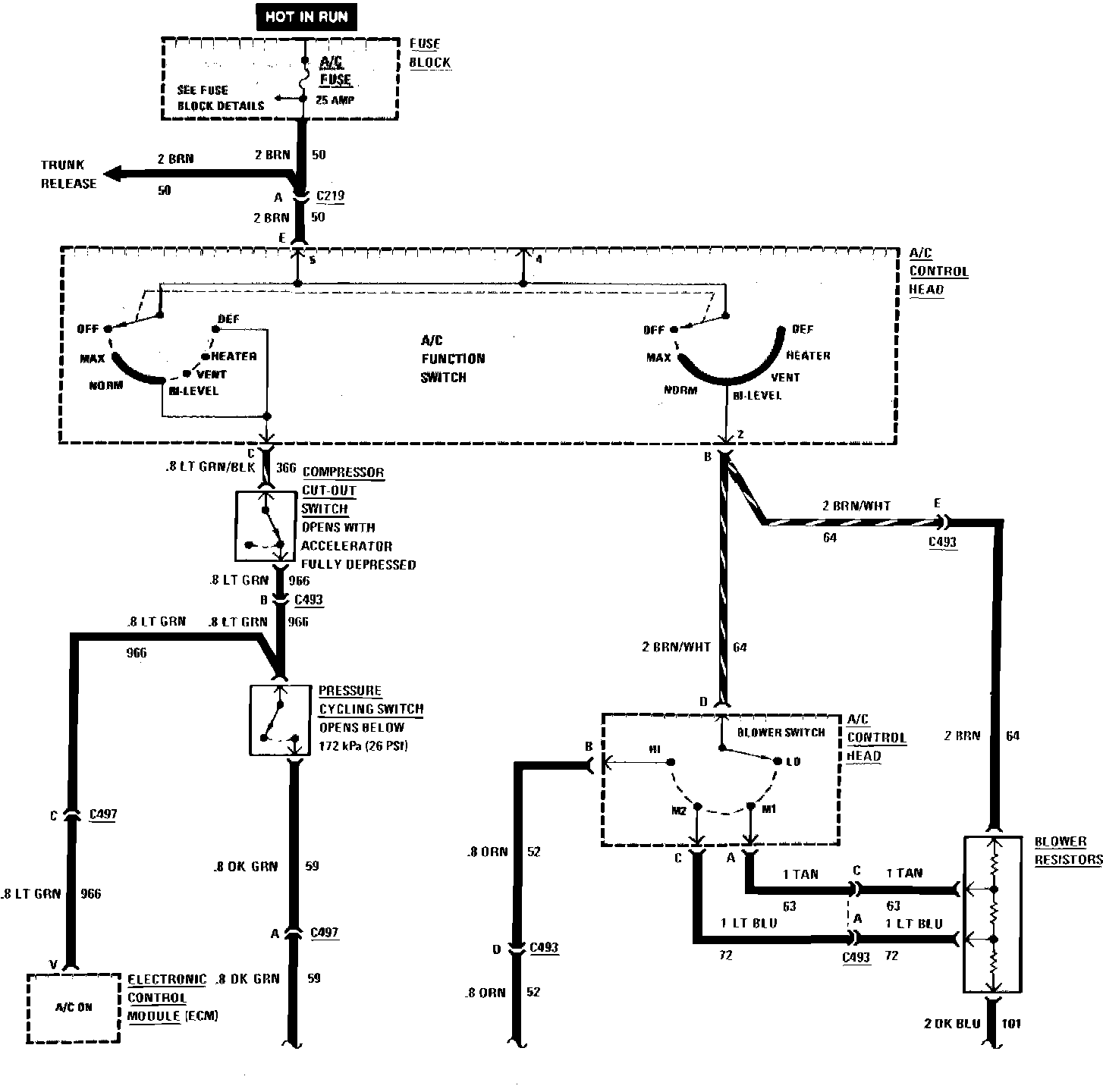

Air Conditioning Blower & Compressor Control Wiring Circuit (Less Electronic A/C):
