Front Marker, Hazard, Park, Stop & Turn Lamp

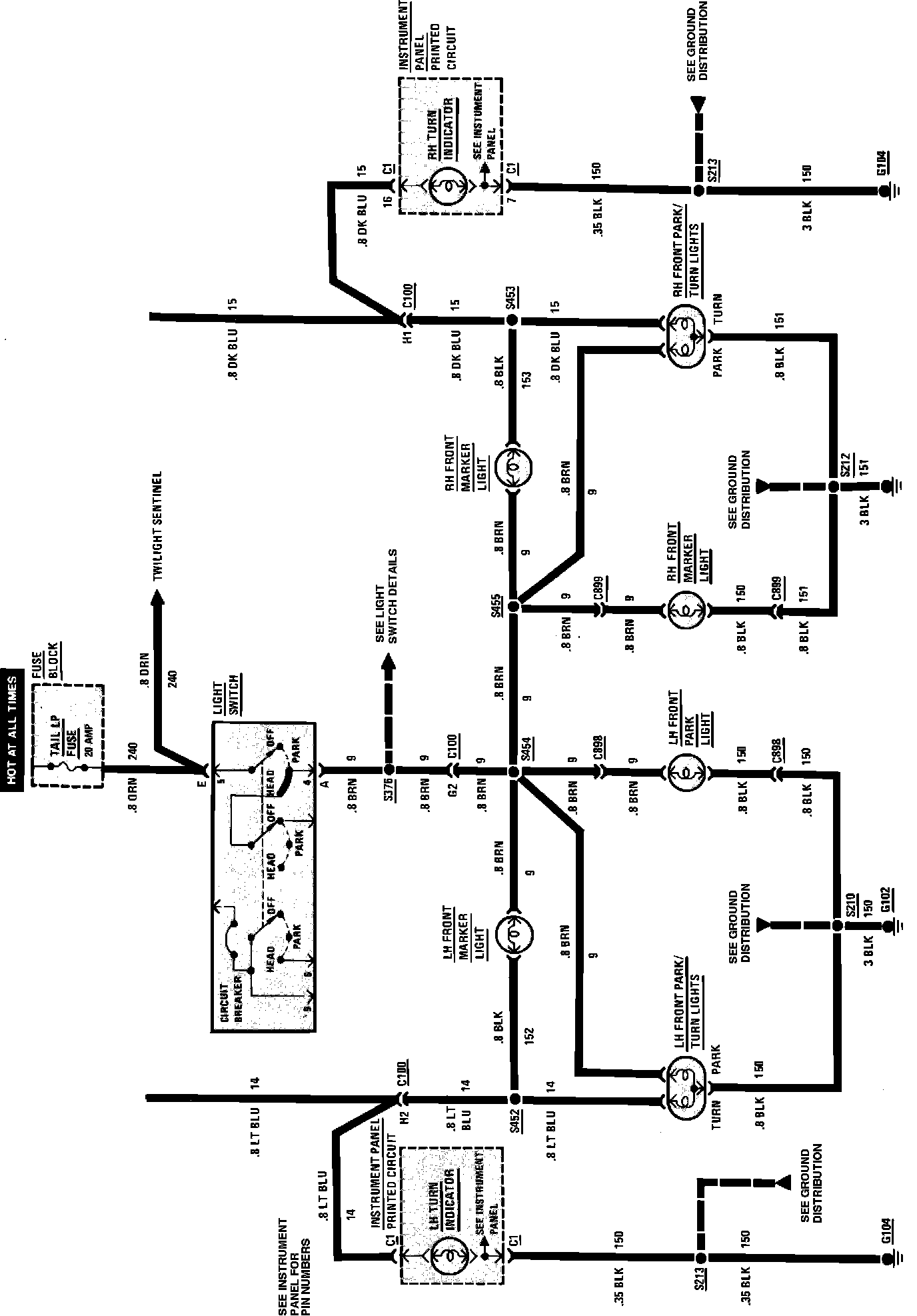

Front Marker, Front Park, Hazard & Turn Lamp Wiring Circuit:
