Home
>>
Buick
>>
1985
>>
Regal V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Electrical Diagrams
>>
Without Twilight Sentinel
Without Twilight Sentinel

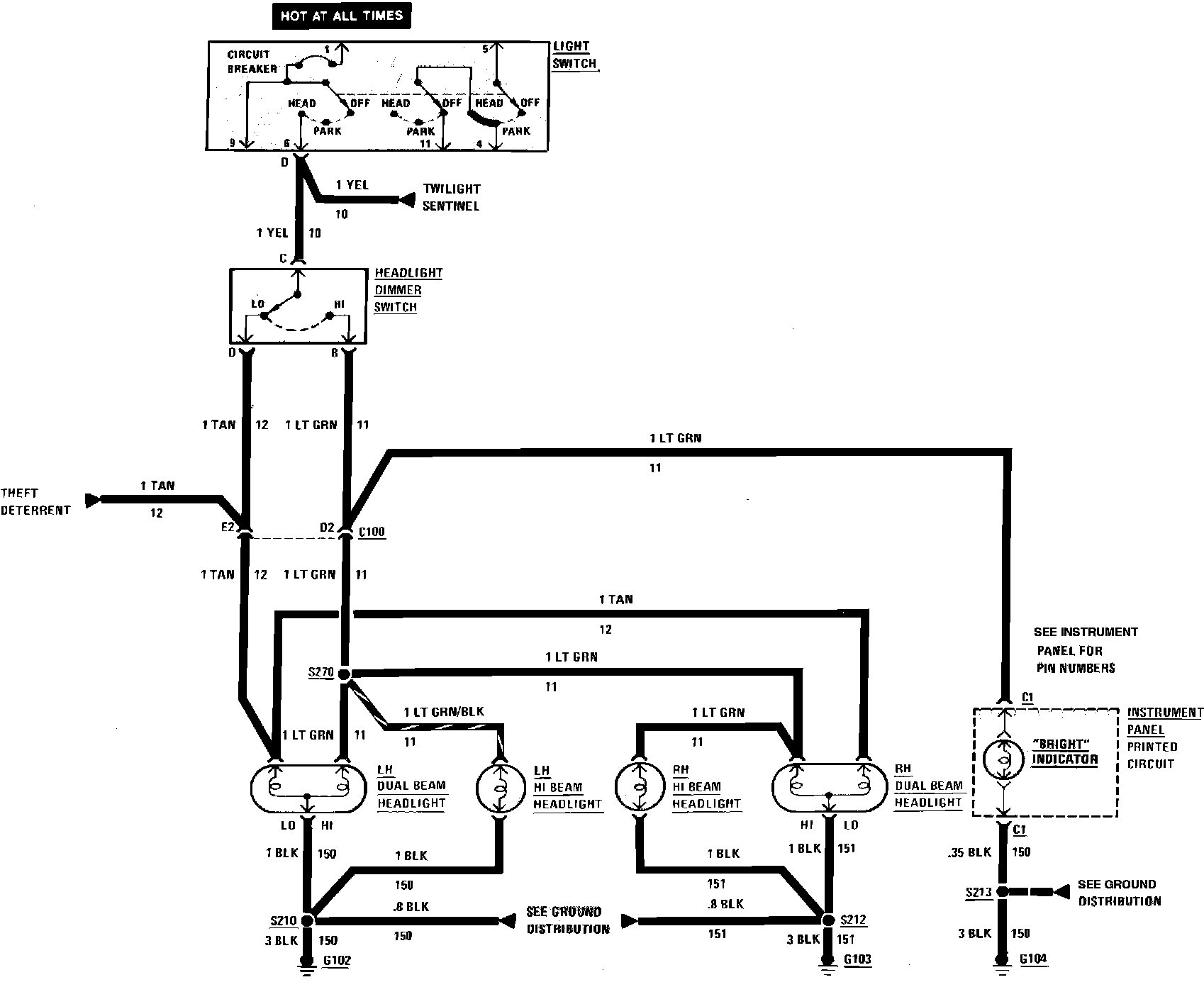

Headlamp Wiring Circuit:
