Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

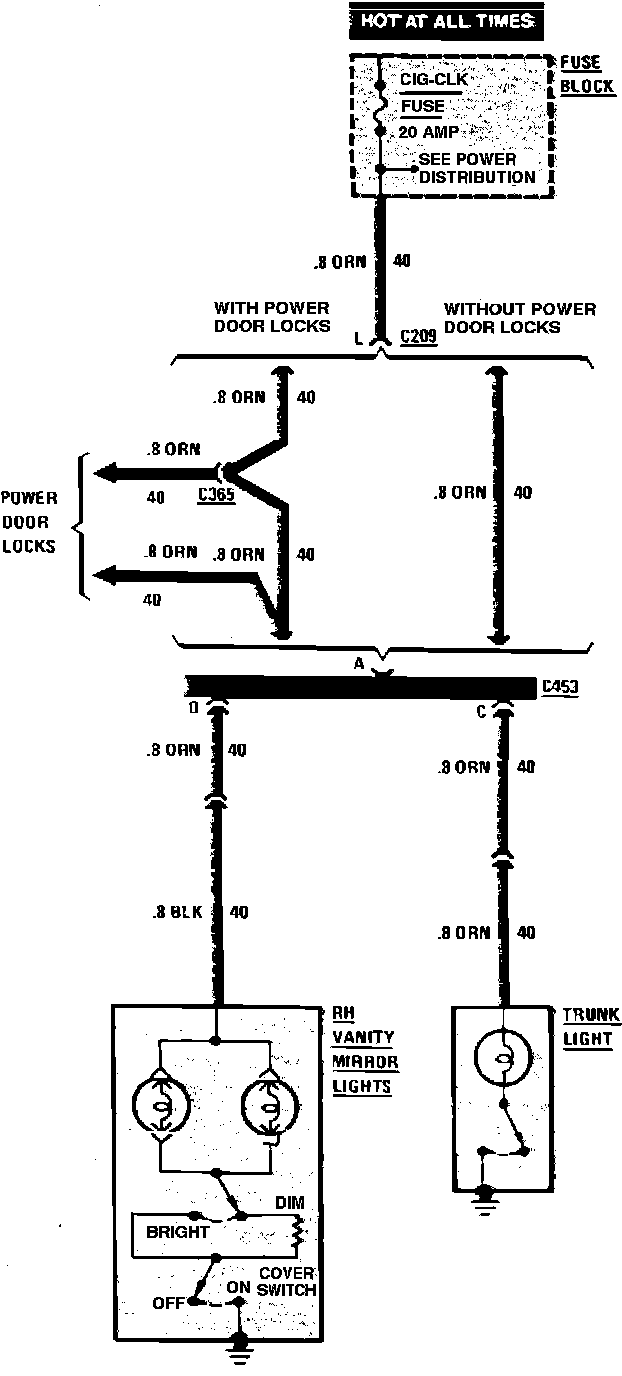

Interior Lighting Wiring Circuit (Trunk/Vanity):
