Home >> Buick >> 1985 >> Regal V6-260 4.3L DSL >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> Instrument Panel G104

Instrument Panel G104

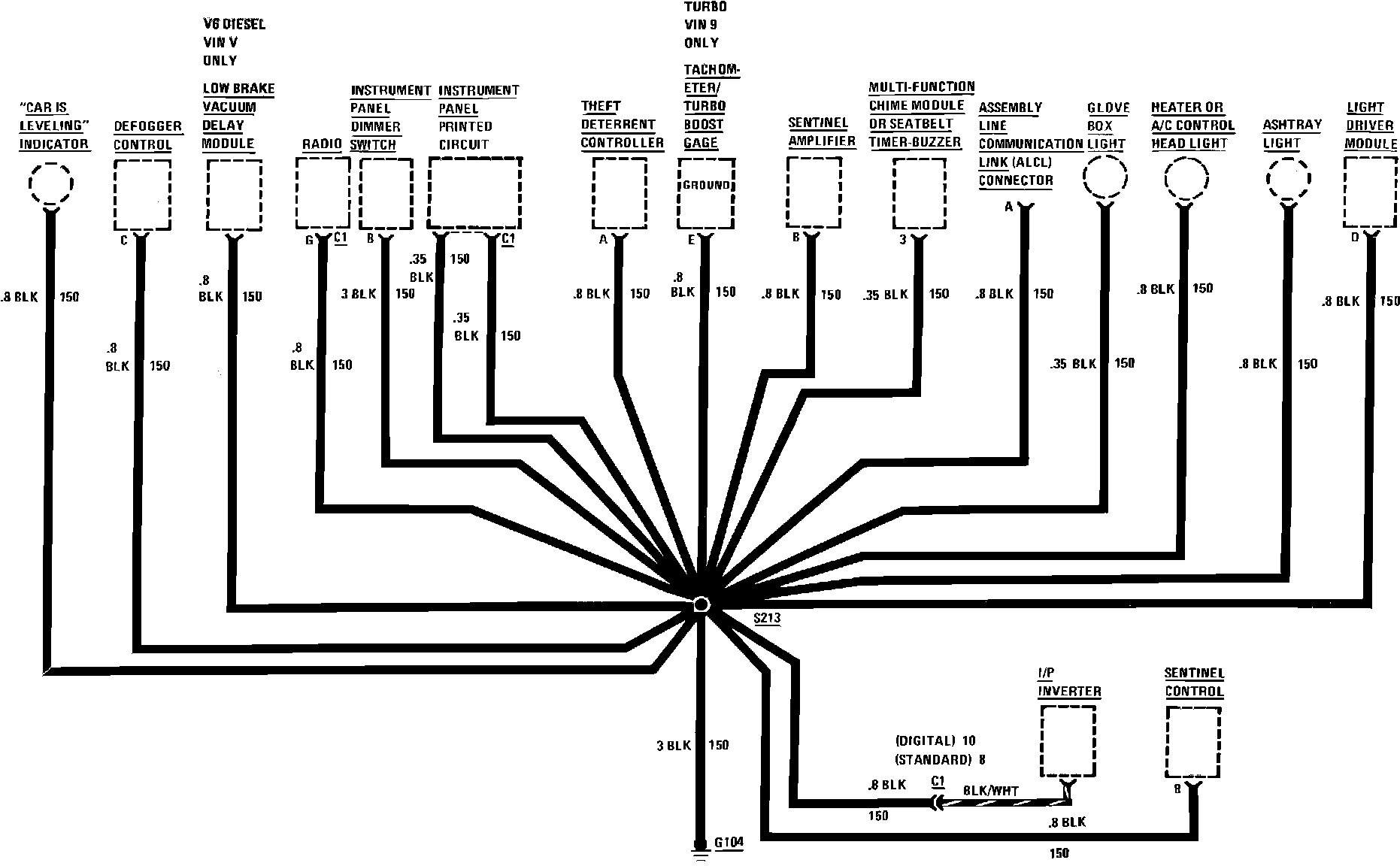

Ground Distribution, Instrument Panel (G104):
