Fuel Control & Torque Converter Clutch (TCC)
Fuel Control & Torque Converter Clutch (TCC)

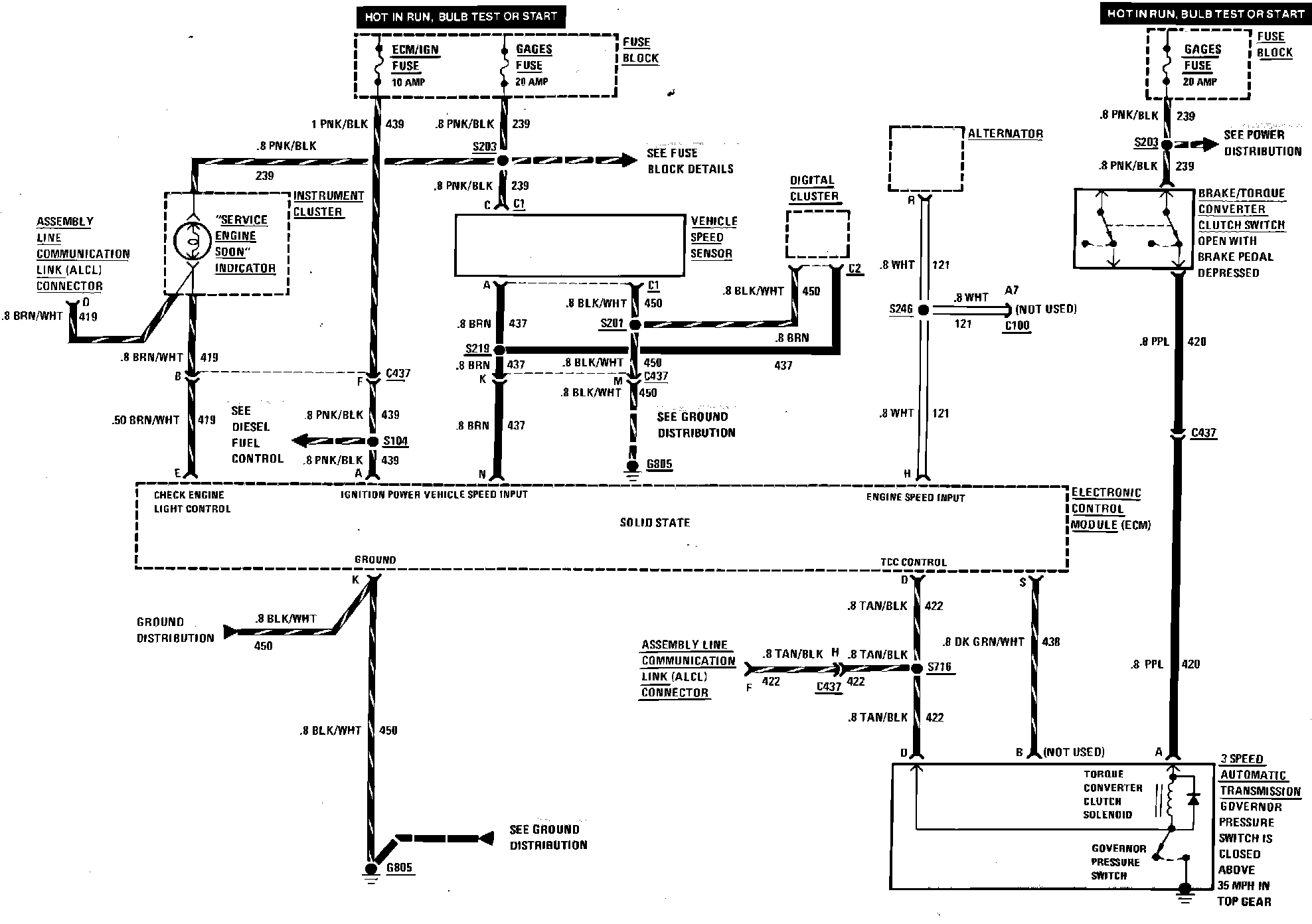

Diesel Fuel Control & Torque Converter Clutch Wiring Circuit:
