Buick
>>
1985
>>
Regal V6-260 4.3L DSL
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Filter System
Fuel Filter System

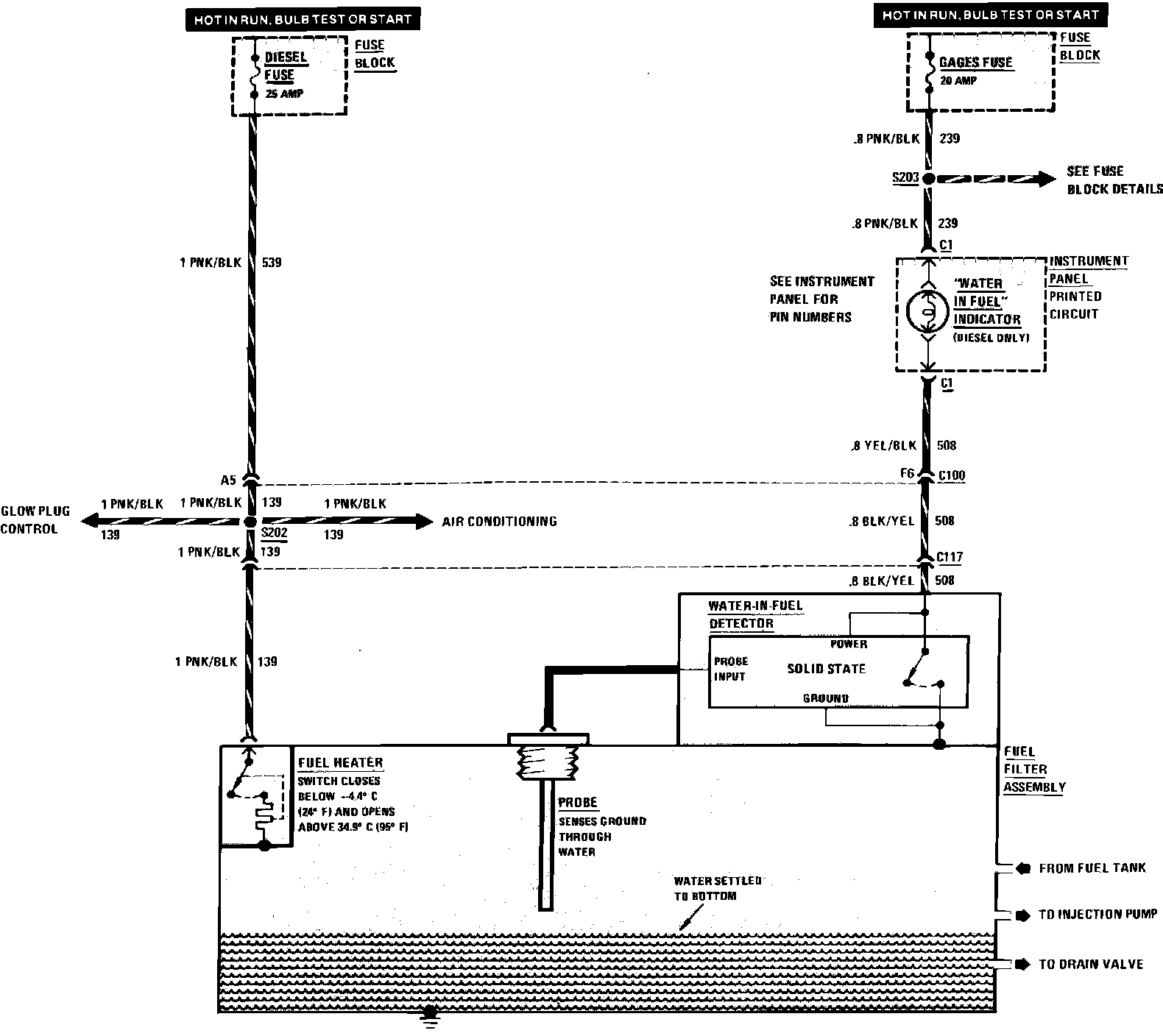

Diesel Fuel Filter System Wiring Circuit:
