A/C Controls, Emission Controls & Torque Converter Clutch Turbo

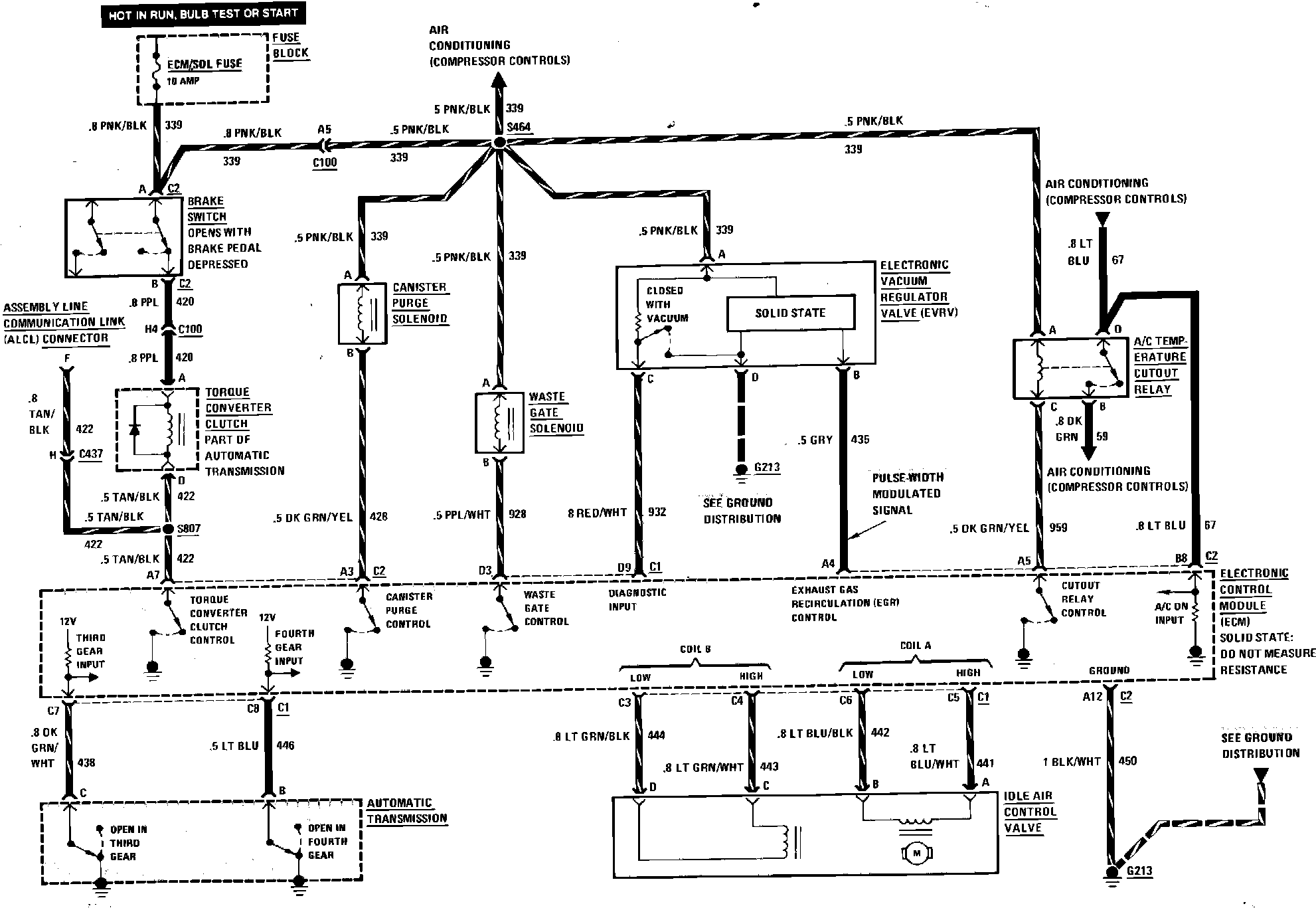

Sequential Fuel Injection (A/C Controls, Emission Controls & Torque Converter Clutch) Wiring Circuit Turbo:
