Air Flow Sensor, Service Engine Soon Indicator & Spark Control

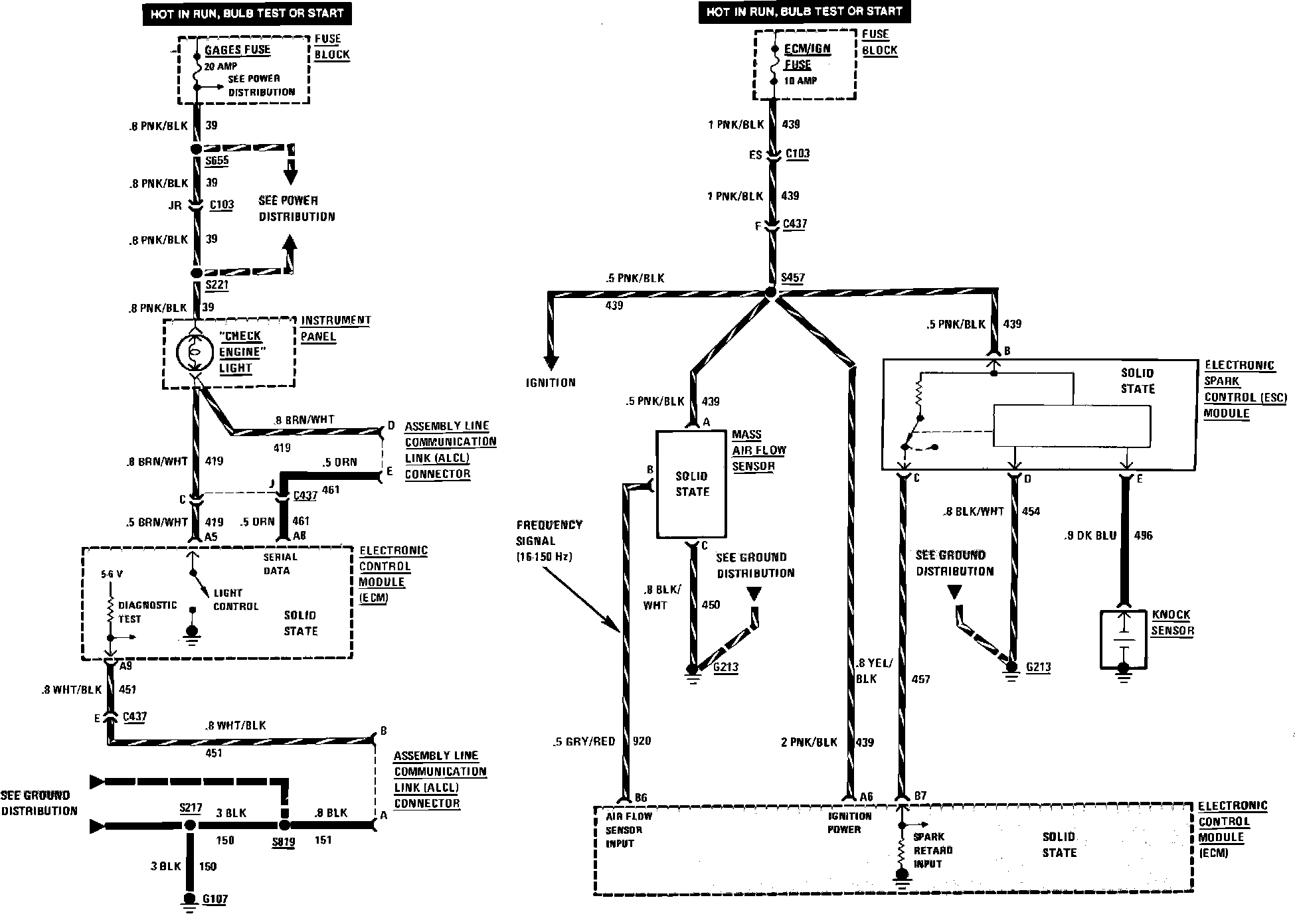

Sequential Fuel Injection (Air Flow Sensor, Check Engine Light & Spark Control) Wiring Circuit, Turbo:
