Antenna: Service and Repair

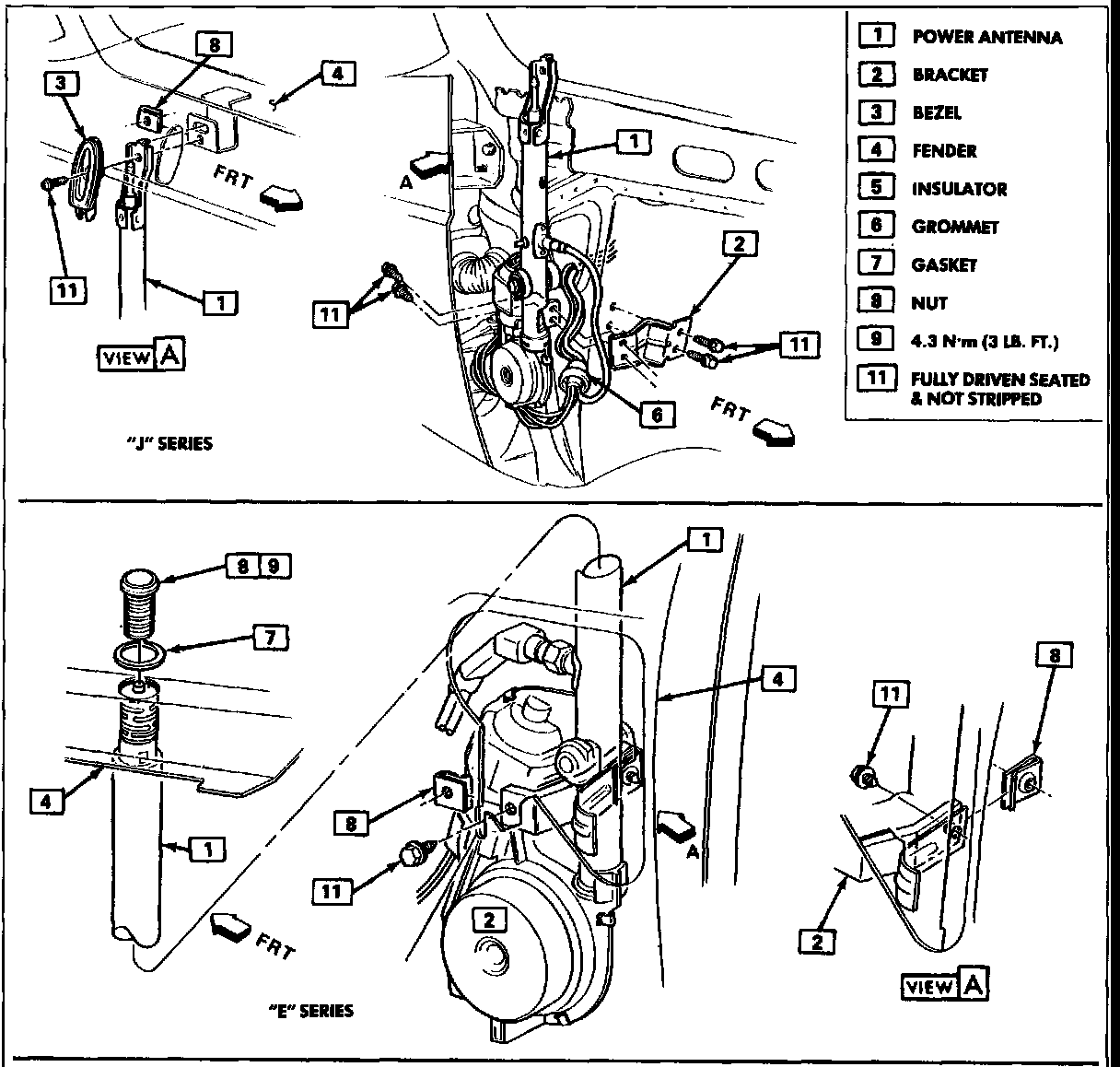

Power Antenna





Remove negative cable from battery before servicing antenna. Disconnect antenna lead-in wire and power wires from relay in dash by glove box.

When equipped with Tri-band, unscrew stub bead (knob) from top of antenna and unscrew loading coil. Remove the 3 rearmost fender panel to wheelhouse attaching screws. Also remove the lower 4 screws attaching the fender panel to door line support. This can be done by opening the door to the half open position. Using a 1/4" drive set with a 6" extension and universal, remove the lowest screw from inside the door.
