Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Riviera V8-307 5.0L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Roof and Associated Components
>>
Convertible Top
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

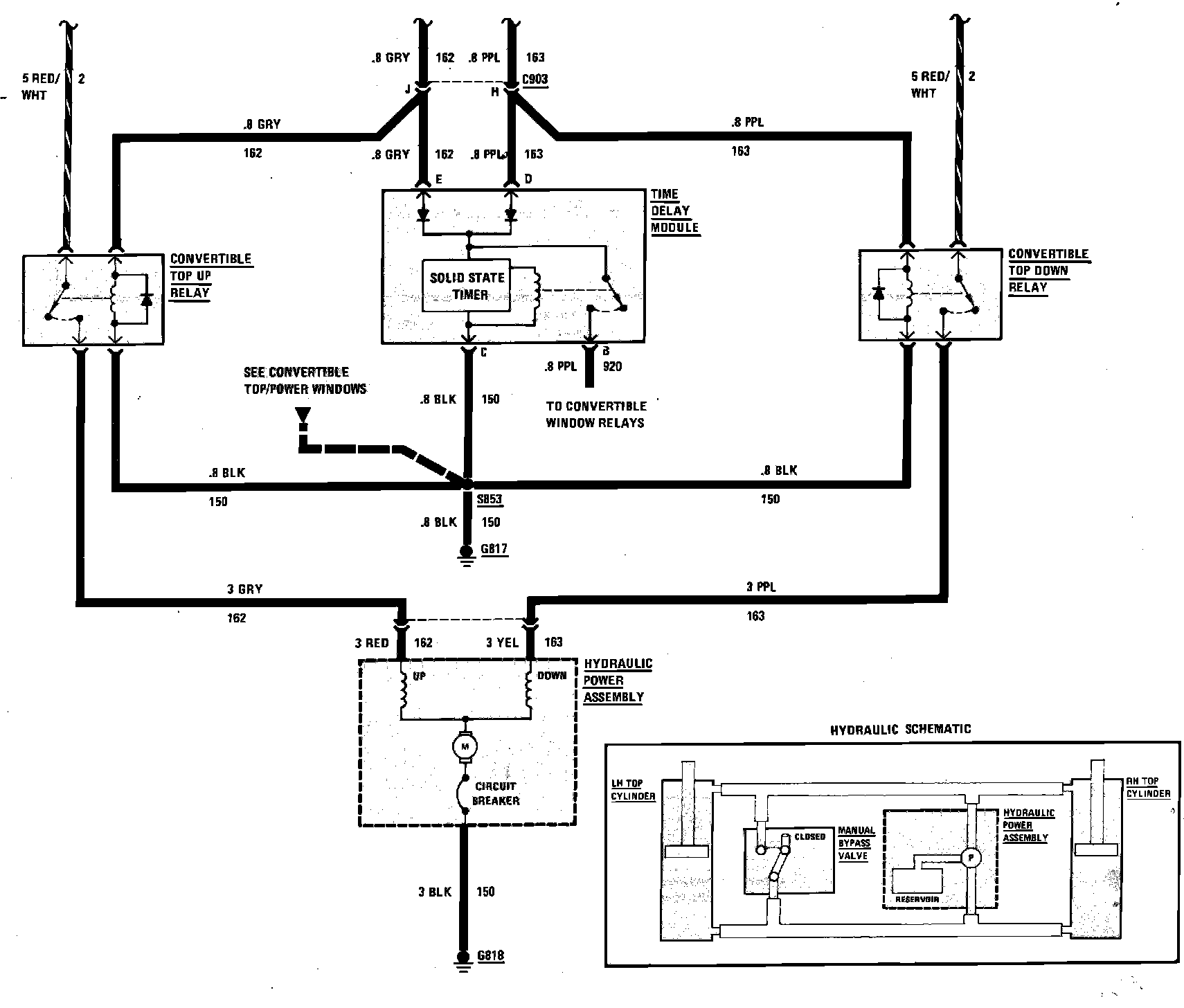

Convertible Top Wiring Circuit:
Convertible Top Wiring Circuit:
