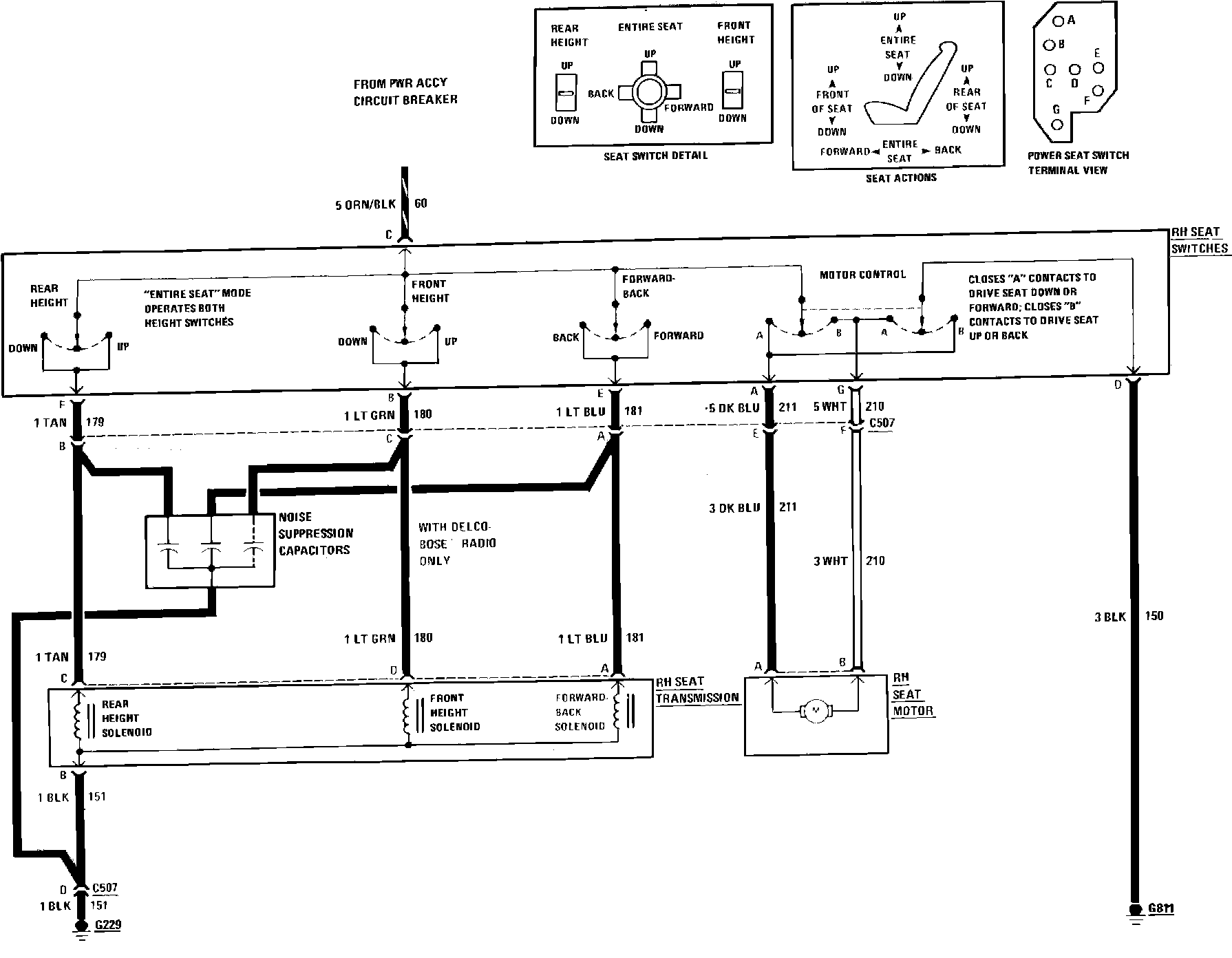

Power Seat Wiring Circuit
>>
One Motor (Part 2 of 2)
One Motor (Part 2 of 2)
Power Seat Wiring Circuit:
