Diesel Data
: Automotive Repair
Home
>>
Buick
>>
1985
>>
Riviera V8-307 5.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

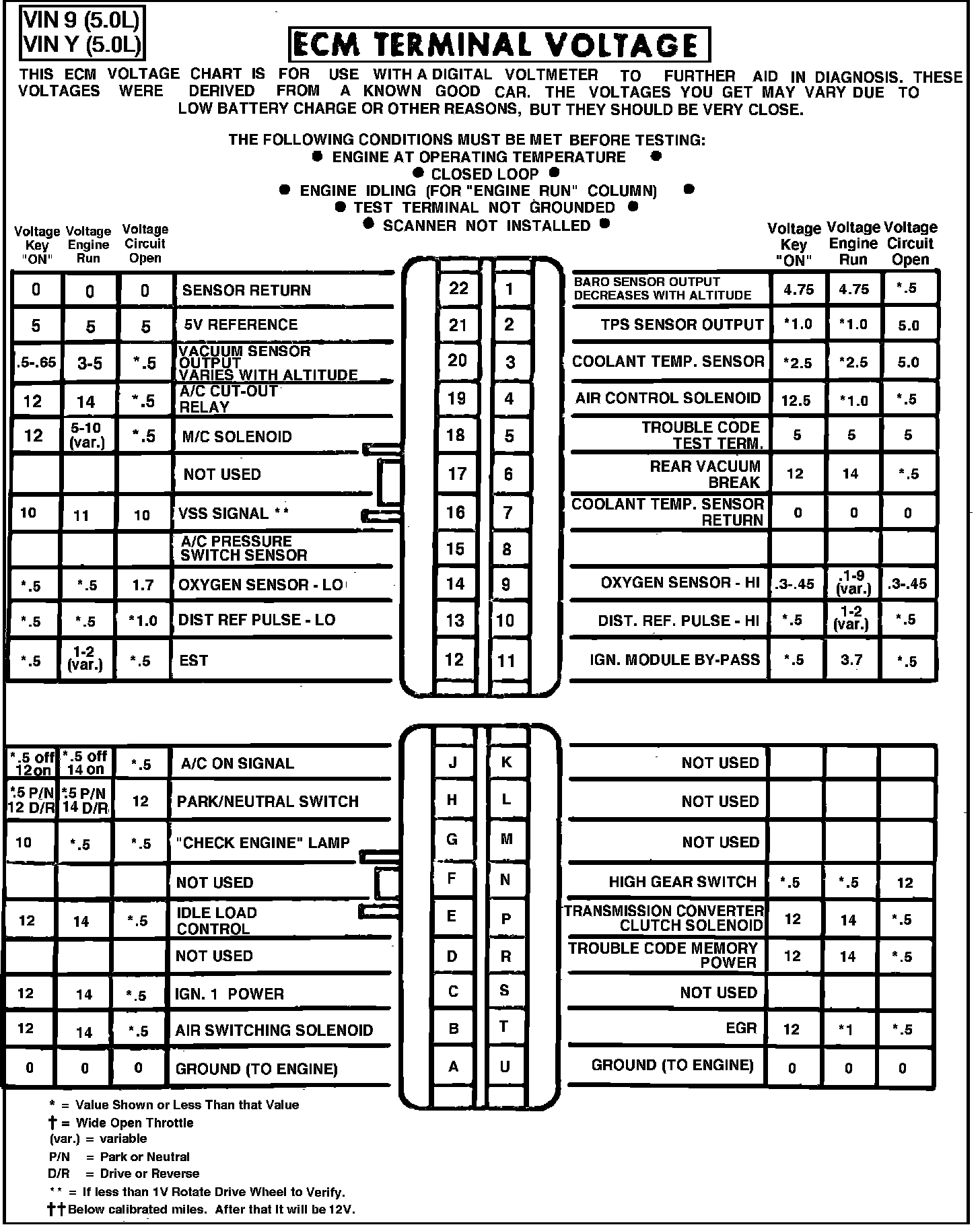

Fig. 012 - ECM Terminal Identification & Voltage Specifications.:
