With Manual A/C (Part 1 of 2)

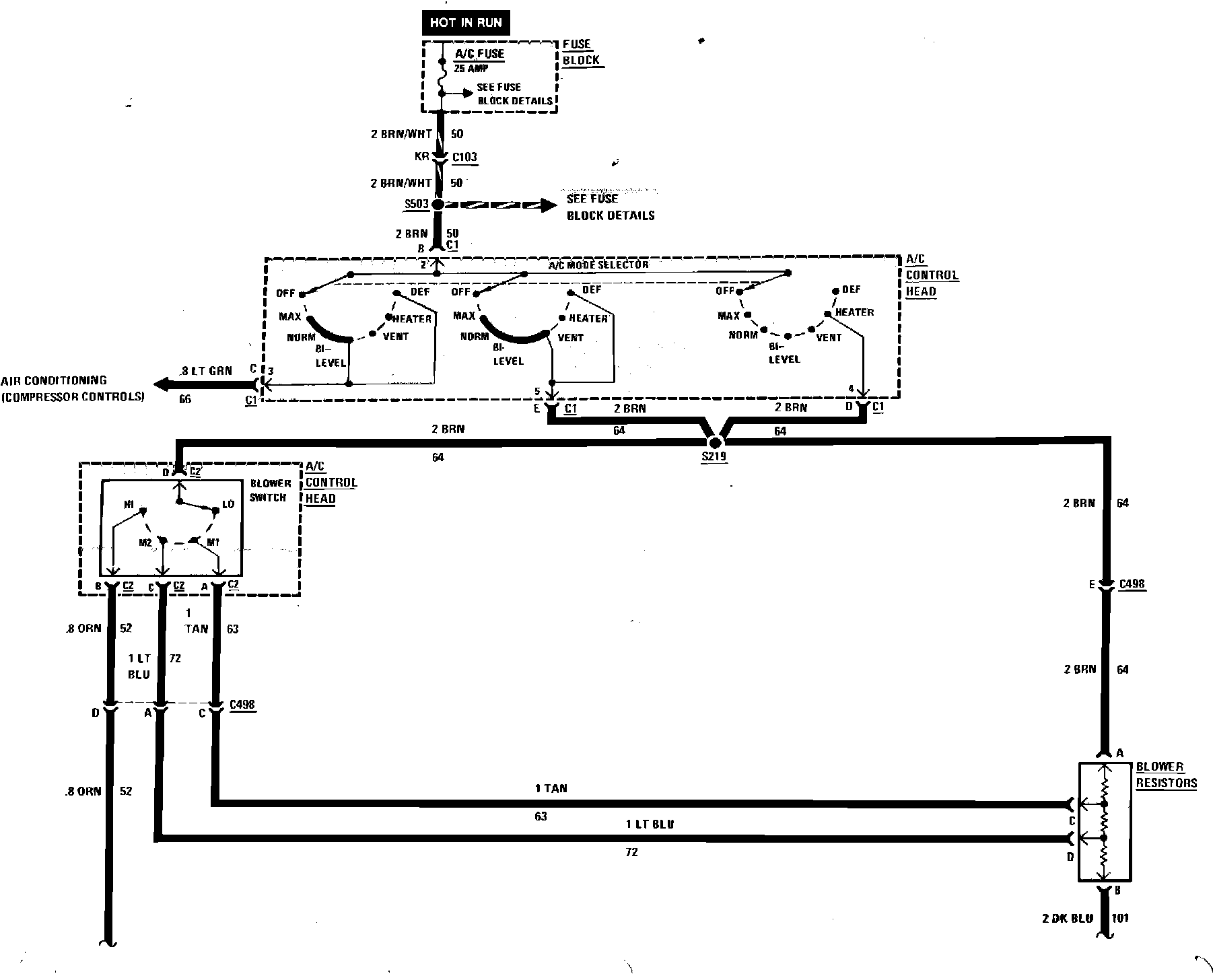

Air Conditioning Blower Control Wiring Circuit (W/Manual Air Conditioning):
